Lovejoy 10682

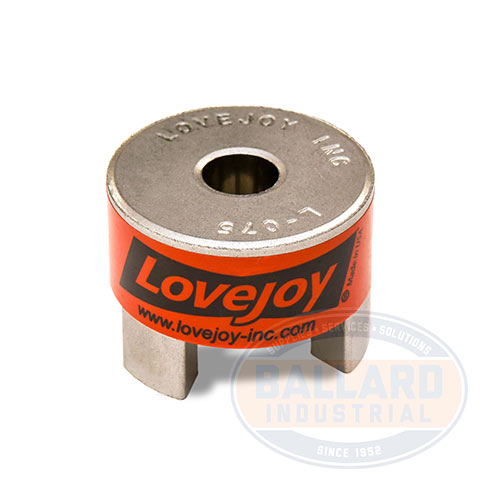

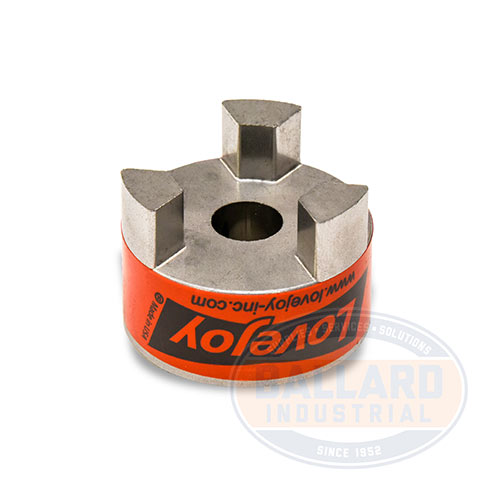

Lovejoy L075 Coupling Hub, 3/8" Bore, No Keyway
$0.00
- BIPN:
- LOV-10682
- UPC:
- 68514410682
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / EA - Each
-
L075 Hub for L Type Jaw Coupling Assembly. 3/8 inch bore, No Keyway.
Jaw Type couplings from Lovejoy are offered in the industry’s largest variety of stock bore/keyway combinations. These couplings require no lubrication and provide highly reliable service for light, medium, and heavy duty electrical motor and internal combustion power transmission applications.
Note: A complete L Type coupling assembly consists of two standard L Type hubs and one spider.
-
- Type L Type
- Series No Keyway - Imperial Bores
- Coupling Size L075
- Bore Size 3/8 in
- Keyway Size No Keyway
- Length Thru Bore 0.82 in
- Overall Length 2.130 in
- Hub Length 1.32 in
- Outside Diameter 1.75 in
- Material Sintered Iron
- Number of Jaws 3
- Weight 0.49 lb
-
- Standard shaft-to-shaft connection for general industrial duty applications
- Fail-safe – will still perform if elastomer fails
- No metal to metal contact
- Resistant to oil, dirt, sand, moisture and grease
