Lovejoy 11505

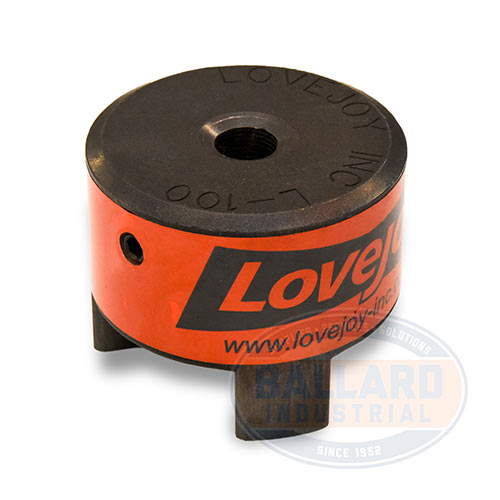

L100 Hub for L Type Jaw Coupling Assembly. 7/16 inch bore, No Keyway.

Jaw Type couplings from Lovejoy are offered in the industry’s largest variety of stock bore/keyway combinations. These couplings require no lubrication and provide highly reliable service for light, medium, and heavy duty electrical motor and internal combustion power transmission applications.

Note: A complete L Type coupling assembly consists of two standard L Type hubs and one spider.

• Type L Type
• Series No Keyway - Imperial Bores
• Coupling Size L100
• Bore Size 7/16 in
• Keyway Size No Keyway
• Length Thru Bore 1.38 in
• Overall Length 3.480 in
• Hub Length 2.09 in
• Outside Diameter 2.54 in
• Material Sintered Iron
• Number of Jaws 3
• Weight 1.60 lb

• Standard shaft-to-shaft connection for general industrial duty applications
• Fail-safe – will still perform if elastomer fails
• No metal to metal contact
• Resistant to oil, dirt, sand, moisture and grease
