Apollo™ 70-604-01

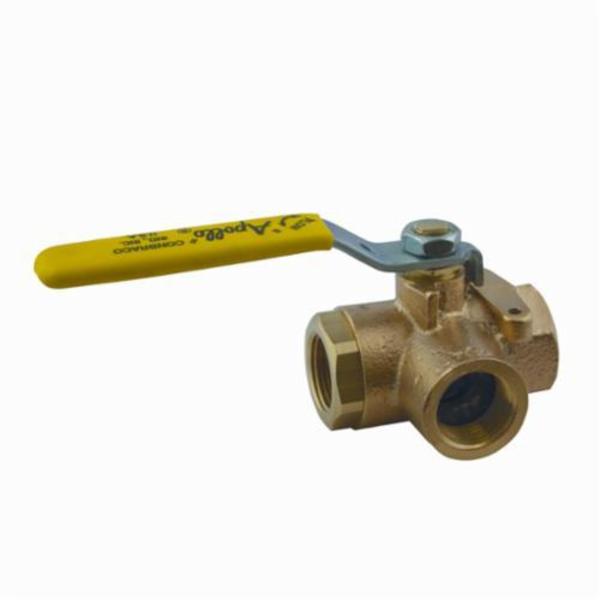

70-600 3-Way Ball Valve, 3/4 in, FNPT, Bronze Body, Standard Port, MPTFE/PTFE Softgoods, Domestic

$61.44

BIPN:: APO-70-604-01
UPC:: 670750673597
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Apollo™ Ball Valve, 3-Way, Series: 70-600, 3/4 in Nominal, FNPT, 400 psig CWP, 500 deg F, Standard Port, Media: Water, Lever Actuator, Chrome Plated Brass Ball, 3 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Bronze Body, Brass Stem Trim, MPTFE/PTFE Softgoods, Domestic

The Apollo™ 70-600 Series standard port 3-Way Diversion valve is ideal for making tank selection and fluid transfers simpler. Manufactured with proven ASTM Materials in the US.

Type 3-Way
Series 70-600
Nominal Size 3/4 in
End Style FNPT
Pressure Rating 400 psig CWP
Temperature Rating 500 deg F
Port Type Standard
Media Water
Actuator Type Lever
Ball Material Chrome Plated Brass
Inlet to Outlet Length 3 in
Top to Inlet Center 2.12 in
Body Material Bronze
Trim Material Brass Stem
Softgoods Material MPTFE/PTFE
Domestic/Import Domestic

Reinforced seats
Blow-out proof stem
Drilled and tapped mounting pad
Steel, zinc plated with vinyl lever and grip
B16 brass retainer
ASTM B16 brass gland nut
Steel, zinc plated lever nut
MPTFE stem packing and PTFE body seal
