Hammond Valve 8901010012

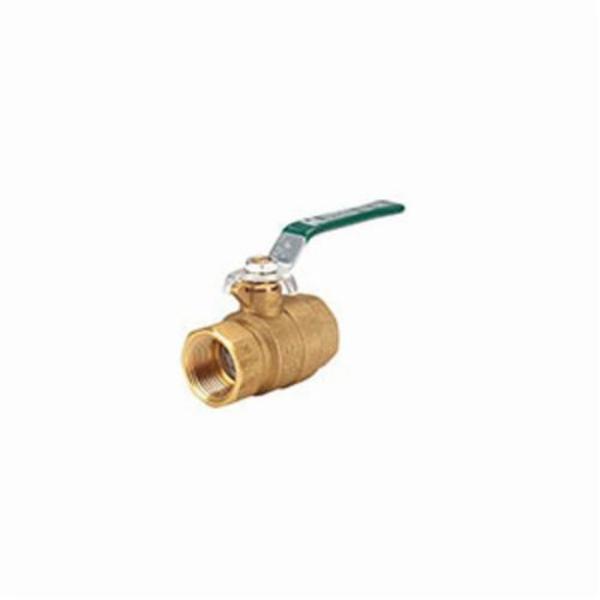

Hammond Valve 8901010012 2-Piece Ball Valve With Handle, 1/2 in, NPT, Forged Brass Body, Full Port, PTFE Softgoods

$24.97

BIPN:: HVA-8901-012
UPC:: 84738107576
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Hammond Valve Ball Valve, 2-Piece, Series: 8901, 1/2 in Nominal, NPT, 600 psi WOG, Full Port, 0.51 in Orifice, Chrome Plated Brass Ball, 2-1/4 in Inlet to Outlet Length, 1.46 in Top to Inlet Center, Forged Brass Body, Brass Stem Trim, PTFE Softgoods

Type 2-Piece
Series 8901
Nominal Size 1/2 in
End Style NPT
Pressure Rating 600 psi WOG
Port Type Full
Orifice Size 0.51 in
Ball Material Chrome Plated Brass
Inlet to Outlet Length 2-1/4 in
Top to Inlet Center 1.46 in
Body Material Forged Brass
Trim Material Brass Stem
Softgoods Material PTFE

Not intended for use in potable water
Blow-out proof stem
PTFE seal/packing thrust washer

Catalog

Instruction/Installation Manual

Specification Sheet
