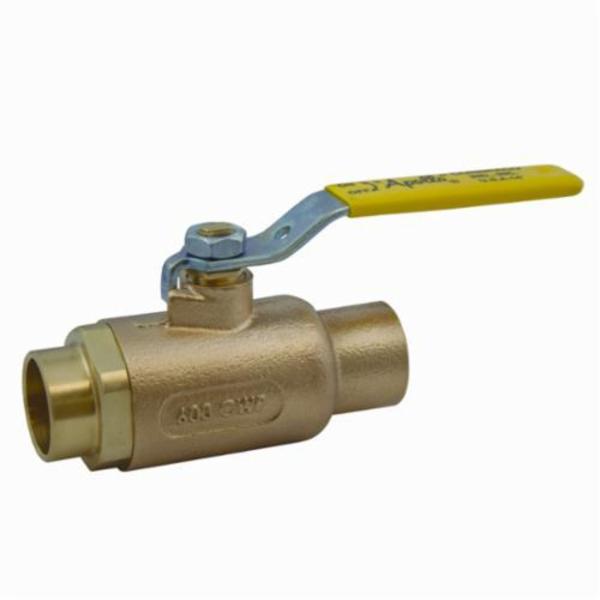

Apollo™ 70-208-01
70-200 2-Piece Ball Valve, 2 in, Solder, Bronze Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
- BIPN:
- APO-70-208-01
- UPC:
- 670750666490
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / EA - Each
-
Apollo™ Ball Valve, 2-Piece, Series: 70-200, 2 in Nominal, Solder, 600 psi CWP, 500 deg F, Standard Port, Media: Water, Lever Actuator, Chrome Plated Brass Ball, 6.37 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, MPTFE/RPTFE Softgoods, Domestic
The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-200 model is a 2-piece standard port ball valve designed to be soft soldered into lines without disassembly. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
-
- Type 2-Piece
- Series 70-200
- Nominal Size 2 in
- End Style Solder
- Pressure Rating 600 psi CWP
- Temperature Rating 500 deg F
- Port Type Standard
- Media Water
- Actuator Type Lever
- Ball Material Chrome Plated Brass
- Inlet to Outlet Length 6.37 in
- Top to Inlet Center 3-1/4 in
- Body Material Bronze
- Trim Material Brass Stem and RPTFE Seat
- Softgoods Material MPTFE/RPTFE
- Domestic/Import Domestic
-
- Premium materials and heavy duty construction
- EZ-Solder™ bronze
- Adjustable stem packing gland
- Blow-out proof stem
- 100% factory tested
- Zinc plated with vinyl steel lever and grip
- ASTM C37700 chrome plated B16/B283
- ASTM B16 gland nut/stem
- Zinc plated steel lever nut
- MPTFE stem packing and RPTFE body seal
