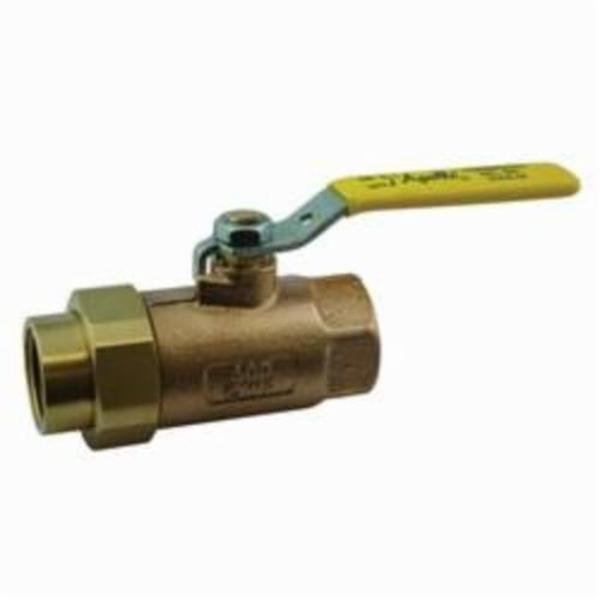

Apollo™ 7030501
Ball Valve, 1 in, Threaded/Single Union, Bronze Body, Standard Port, PTFE/RPTFE Softgoods
$88.65
- BIPN:
- APO-70-305-01
- UPC:
- 670750669859
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / EA - Each
This product is NON-RETURNABLE.
Prop 65 - WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and/or reproductive harm - www.P65Warnings.ca.gov
-
Apollo™ Ball Valve, Series: 70-300, 1 in Nominal, Threaded/Single Union, 600/150 psi, 500 deg F, Standard Port, Brass Ball, 4.46 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Bronze Body, RPTFE Seat and B16 Stem Trim, PTFE/RPTFE Softgoods
-
- Series 70-300
- Nominal Size 1 in
- End Style Threaded/Single Union
- Pressure Rating 600/150 psi
- Temperature Rating 500 deg F
- Port Type Standard
- Ball Material Brass
- Inlet to Outlet Length 4.46 in
- Top to Inlet Center 2-1/4 in
- Body Material Bronze
- Trim Material RPTFE Seat and B16 Stem
- Softgoods Material PTFE/RPTFE
-
- Reinforced seats
- Fluorocarbon O-Ring sealed single union requires only light torque to seal
- Blow-out proof stem
- Chromium plated ball
- PTFE seal and RPTFE stem packing
Ball Valve, 1/2 in, Union End x NPT, Bronze Body, Full Port, Fluorocarbon/MRPTFE Softgoods
$38.66
BIPN: APO-70-303-01
Quantity Interval:
1
/ EA - Each
VALVE BALL BRONZE UNION END 1/4" (APO-70-301-01-&)
Single Union Ball Valve, 1/4 in, FNPT x Union End, Bronze Body, Standard Port, Fluorocarbon/RPTFE Softgoods
$37.04
BIPN: APO-70-301-01
Quantity Interval:
1
/ EA - Each
VALVE BALL BRONZE UNION END 3/8" (APO-70-302-01-&)
Single Union Ball Valve, 3/8 in, FNPT x Union End, Bronze Body, Standard Port, Fluorocarbon/RPTFE Softgoods
$37.04
BIPN: APO-70-302-01
Quantity Interval:
1
/ EA - Each
VALVE BALL SP BRONZE 1" (APO-70-105-01)
70-100 2-Piece Ball Valve, 1 in, FNPT, Bronze Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
$55.22
BIPN: APO-70-105-01
Quantity Interval:
1
/ EA - Each
VALVE BALL SP BRONZE 1/4" (APO-70-101-01)
70-100 2-Piece Ball Valve, 1/4 in, FNPT, Bronze Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
$25.58
BIPN: APO-70-101-01
Quantity Interval:
1
/ EA - Each
VALVE BALL SP BRONZE 1/2" (APO-70-103-01)
70-100 2-Piece Ball Valve, 1/2 in, FNPT, Bronze Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
$26.60
BIPN: APO-70-103-01
Quantity Interval:
1
/ EA - Each
VALVE BALL SP BRONZE 1-1/2" (APO-70-107-01)
70-100 2-Piece Ball Valve, 1-1/2 in, FNPT, Bronze Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
$113.75
BIPN: APO-70-107-01
Quantity Interval:
1
/ EA - Each
VALVE BALL BRONZE SOLDER 1-1/4" (APO-70-206-01)
70-200 2-Piece Ball Valve, 1-1/4 in, Solder, Bronze Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
$84.37
BIPN: APO-70-206-01
Quantity Interval:
1
/ EA - Each
VALVE BALL BRONZE SOLDER 1-1/2" (APO-70-207-01)
70-200 2-Piece Ball Valve, 1-1/2 in, Solder, Bronze Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
$107.74
BIPN: APO-70-207-01
Quantity Interval:
1
/ EA - Each
