Apollo™ 61-105-01

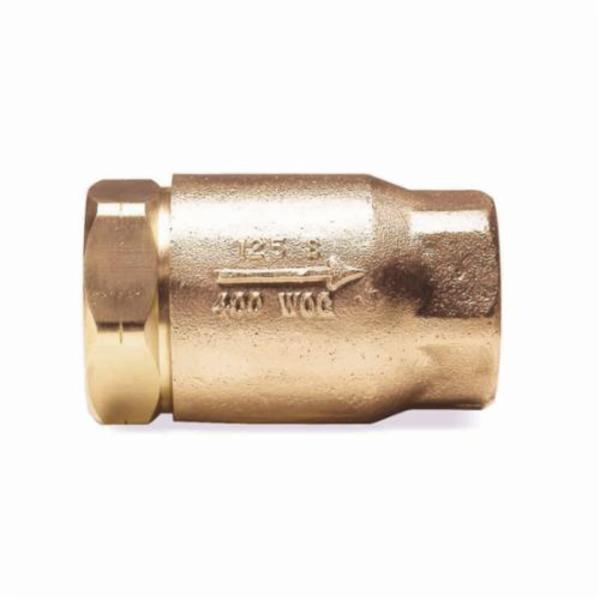

CVB1 Standard In-Line Ball Cone Check Valve, 1 in, FNPT, 6 gpm, Cast Bronze Body, Domestic

$85.67

BIPN:: APO-61-105-01
UPC:: 670750632150
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Prop 65 - WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and/or reproductive harm - www.P65Warnings.ca.gov

Apollo™ In-Line Ball Cone Check Valve, Standard, Series: 61-100, 1 in Nominal, FNPT, 400 psig, 406 deg F, 6 gpm, Media: Liquid/Steam, Spring Loaded Actuator, 3-1/2 in Inlet to Outlet Length, Cast Bronze Body, Brass Trim, 1.93 in H, Domestic

The Apollo™ CVB Ball Cone® check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA.

Type Standard
Series 61-100
Nominal Size 1 in
End Style FNPT
Pressure Rating 400 psig
Temperature Rating 406 deg F
Flow Rate 6 gpm
Media Liquid/Steam
Actuator Type Spring Loaded
Inlet to Outlet Length 3-1/2 in
Body Material Cast Bronze
Trim Material Brass
Dimensions 1.93 in H
Domestic/Import Domestic

Tight shut-off with liquid media
Flow straight-through design efficiency
RPTFE ball cone® for chemical resistance
100% factory tested
0.5 psig cracking pressure

Specification Sheet
