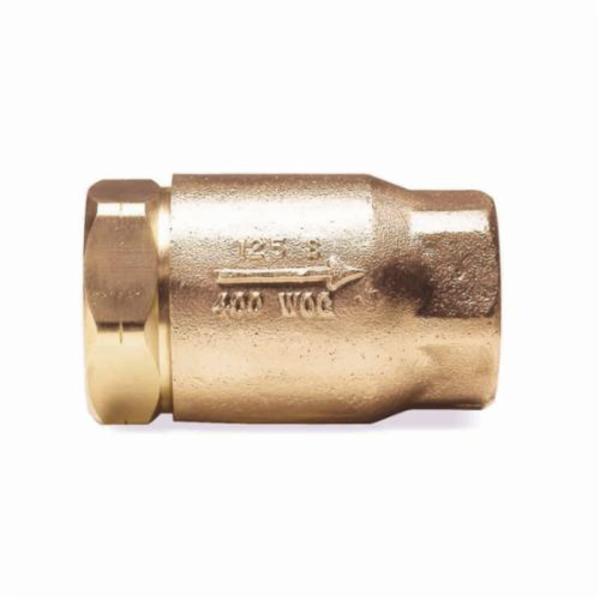

Apollo™ 61-108-01
CVB2 Standard In-Line Ball Cone Check Valve, 2 in, FNPT, 81 gpm, Cast Bronze Body, Domestic
- BIPN:
- APO-61-108-01
- UPC:
- 670750632235
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / EA - Each
Prop 65 - WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and/or reproductive harm - www.P65Warnings.ca.gov
-
Apollo™ In-Line Ball Cone Check Valve, Standard, Series: 61-100, 2 in Nominal, FNPT, 400 psig, 406 deg F, 81 gpm, Media: Liquid/Steam, Spring Loaded Actuator, 6 in Inlet to Outlet Length, Cast Bronze Body, Brass Trim, 3.68 in H, Domestic
The Apollo™ CVB Ball Cone® check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA.
-
- Type Standard
- Series 61-100
- Nominal Size 2 in
- End Style FNPT
- Pressure Rating 400 psig
- Temperature Rating 406 deg F
- Flow Rate 81 gpm
- Media Liquid/Steam
- Actuator Type Spring Loaded
- Inlet to Outlet Length 6 in
- Body Material Cast Bronze
- Trim Material Brass
- Dimensions 3.68 in H
- Domestic/Import Domestic
-
- Tight shut-off with liquid media
- Flow straight-through design efficiency
- RPTFE ball cone® for chemical resistance
- 100% factory tested
- 0.5 psig cracking pressure
