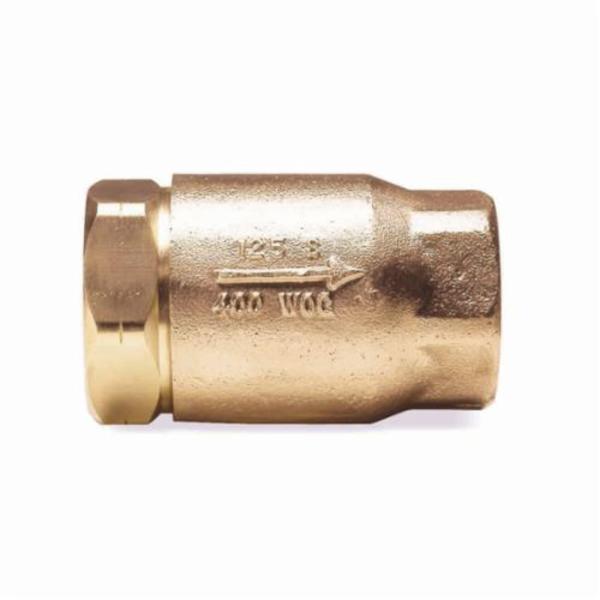

Apollo™ 61-104-01
CVB34 Standard In-Line Ball Cone Check Valve, 3/4 in, FNPT, 3.53 gpm, Cast Bronze Body, Domestic
- BIPN:
- APO-61-104-01
- UPC:
- 670750632082
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / EA - Each
Prop 65 - WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and/or reproductive harm - www.P65Warnings.ca.gov
-
Apollo™ In-Line Ball Cone Check Valve, Standard, Series: 61-100, 3/4 in Nominal, FNPT, 400 psig, 406 deg F, 3.53 gpm, Media: Liquid/Steam, Spring Loaded Actuator, 2.87 in Inlet to Outlet Length, Cast Bronze Body, Brass Trim, 1-1/2 in H, Domestic
The Apollo™ CVB Ball Cone® check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA.
-
- Type Standard
- Series 61-100
- Nominal Size 3/4 in
- End Style FNPT
- Pressure Rating 400 psig
- Temperature Rating 406 deg F
- Flow Rate 3.53 gpm
- Media Liquid/Steam
- Actuator Type Spring Loaded
- Inlet to Outlet Length 2.87 in
- Body Material Cast Bronze
- Trim Material Brass
- Dimensions 1-1/2 in H
- Domestic/Import Domestic
-
- Tight shut-off with liquid media
- Flow straight-through design efficiency
- RPTFE ball cone® for chemical resistance
- 100% factory tested
- 0.5 psig cracking pressure
