Apollo™ 7714601

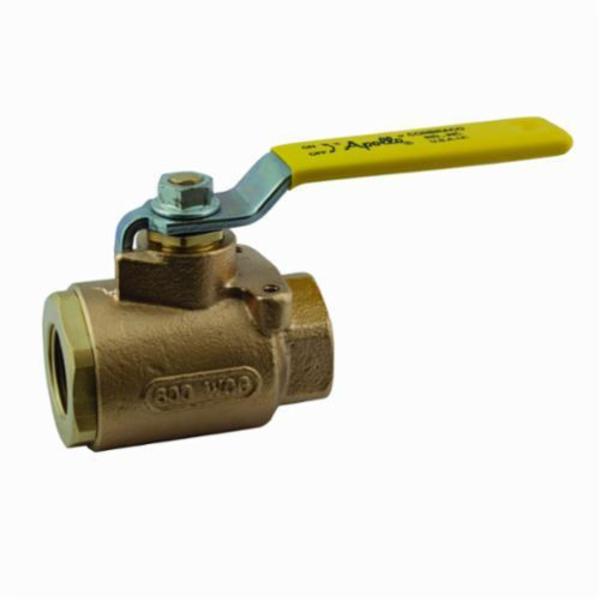

2-Piece Ball Valve With Mounting Pad, 1-1/4 in, FNPT, Bronze Body, Full Port, PTFE/RPTFE Softgoods

$191.24
BIPN:
APO-77-146-01
UPC:
670750706127
Availability:
Typically Ships in 1 to 7 Days
Quantity Interval:
1 / EA - Each

This product is NON-RETURNABLE.

Prop 65 - WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and/or reproductive harm - www.P65Warnings.ca.gov

Apollo™ Ball Valve, 2-Piece, Series: 77-140, 1-1/4 in Nominal, FNPT, 600 psig CWP, 500 deg F, Full Port, Lever Actuator, Stainless Steel Ball, 4-1/4 in Inlet to Outlet Length, 2.87 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, PTFE/RPTFE Softgoods

Designed for easy actuator mounting or panel mounting where highest Cv values are desired. RPTFE seats and stuffing box ring. Also available with 250 lb steam trim option.
