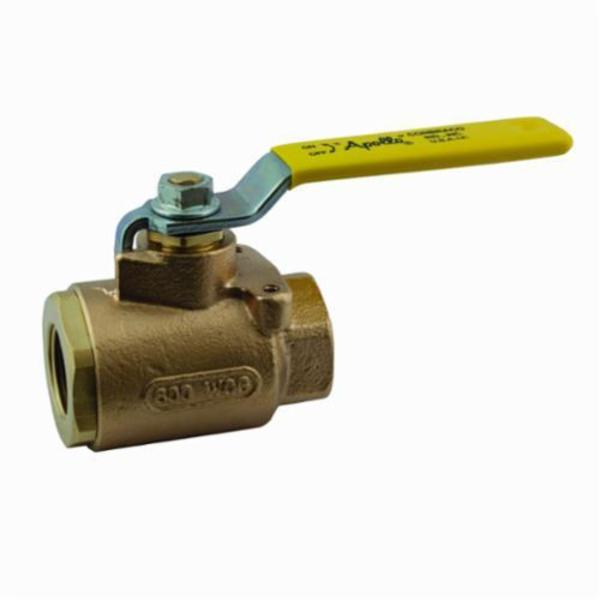

Apollo™ 77-144-01

77-140 2-Piece Ball Valve With Mounting Pad, 3/4 in, FNPT, Bronze Body, Full Port, PTFE/RPTFE Softgoods, Domestic

$84.70

BIPN:: APO-77-144-01
UPC:: 670750705632
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Apollo™ Ball Valve, 2-Piece, Series: 77-140, 3/4 in Nominal, FNPT, 600 psig CWP, 500 deg F, Full Port, Lever Actuator, Stainless Steel Ball, 3.12 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, PTFE/RPTFE Softgoods, Domestic

Designed for easy actuator mounting or panel mounting where highest Cv values are desired. RPTFE seats and stuffing box ring. Also available with 250 lb steam trim option.

Type 2-Piece
Series 77-140
Nominal Size 3/4 in
End Style FNPT
Pressure Rating 600 psig CWP
Temperature Rating 500 deg F
Port Type Full
Actuator Type Lever
Ball Material Stainless Steel
Inlet to Outlet Length 3.12 in
Top to Inlet Center 2.12 in
Body Material Bronze
Trim Material 316 Stainless Steel Stem and RPTFE Seat
Softgoods Material PTFE/RPTFE
Domestic/Import Domestic

01: Standard configuration
Blow-out proof stem
Hardened ball for wear resistance
100% factory tested
Mounting pad for easy actuator mounting
Full port for full flow and minimum pressure drop
150 psi working steam pressure
Vacuum service to 29 in Hg
Heavy duty ball valve
PTFE seal and RPTFE stem packing
