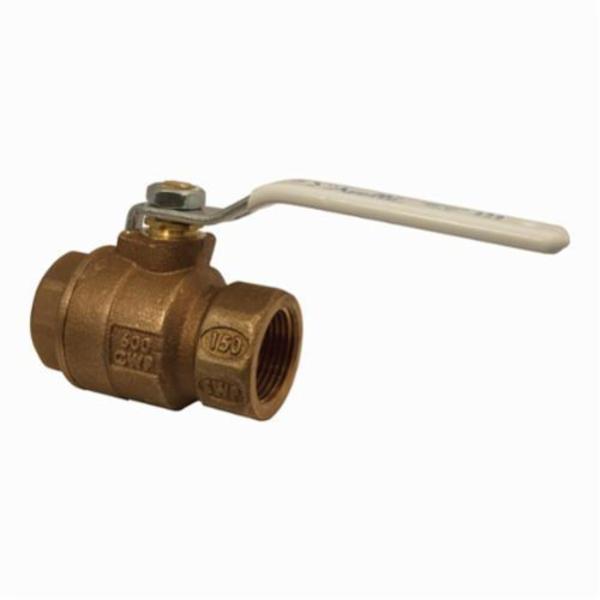

Apollo™ 77CLF-104-01-A

Apollo™ Ball Valve, 2-Piece, Series: 77CLF-A, 3/4 in Nominal, FNPT, 600 psi CWP, 450 deg F, Full Port, Media: Water, Lever Actuator, Chrome Plated Brass Ball, 2.67 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, RPTFE Softgoods, Domestic

The Apollo™ 77CLF Contractor Series Lead Free Ball Valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants using proven EZ-Solder™ Lead Free materials.

• Type 2-Piece
• Series 77CLF-A
• Nominal Size 3/4 in
• End Style FNPT
• Pressure Rating 600 psi CWP
• Temperature Rating 450 deg F
• Port Type Full
• Media Water
• Actuator Type Lever
• Ball Material Chrome Plated Brass
• Inlet to Outlet Length 2.67 in
• Top to Inlet Center 1.91 in
• Body Material Bronze
• Trim Material Brass Stem and RPTFE Seat
• Softgoods Material RPTFE
• Domestic/Import Domestic

• Easily identifiable white handle grip and blue Lead free hang tag
• EZ-Solder™ Lead free bronze body
• Blow-out proof stem
• Vacuum service to 29 in Hg
• ASTM B16 brass gland nut
• Zinc plated steel nut
• UNS C27451 Lead free brass retainer
• Zinc plated steel/vinyl standard handle
• Standard trim
• Complies with Federal Public law 111-380, ANSI 3Rd Party approved and listed
• 150 psi steam working pressure
• RPTFE stem packing
