Apollo™ 72-106-01

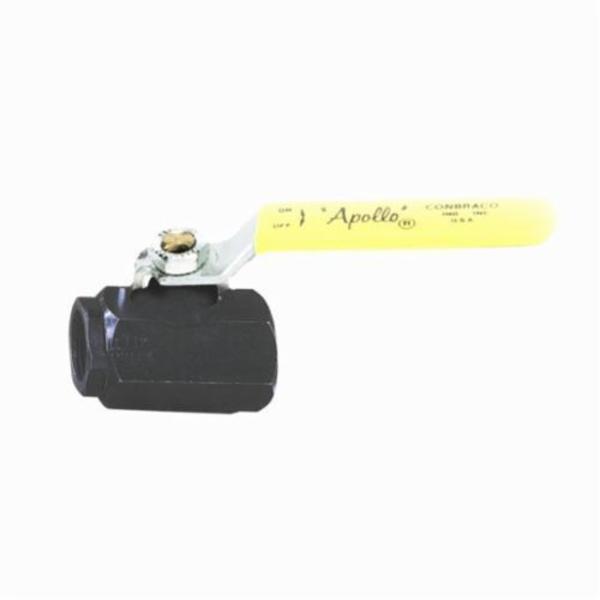

72-100 2-Piece Ball Valve, 1-1/4 in, FNPT, Carbon Steel Body, Full Port, Domestic

$259.52

BIPN:: APO-72-106-01
UPC:: 670750681103
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Apollo™ Ball Valve, 2-Piece, Series: 72-100, 1-1/4 in Nominal, FNPT, 3000 psig CWP, Full Port, Lever Actuator, Chrome Plated Carbon Steel Ball, 4.65 in Inlet to Outlet Length, 3.43 in Top to Inlet Center, Carbon Steel Body, Chrome Plated Carbon Steel Stem and RPTFE Seat Trim, Domestic

Type 2-Piece
Series 72-100
Nominal Size 1-1/4 in
End Style FNPT
Pressure Rating 3000 psig CWP
Port Type Full
Actuator Type Lever
Ball Material Chrome Plated Carbon Steel
Inlet to Outlet Length 4.65 in
Top to Inlet Center 3.43 in
Body Material Carbon Steel
Trim Material Chrome Plated Carbon Steel Stem and RPTFE Seat
Domestic/Import Domestic

01: Standard configuration
Barstock design
Reinforced seats
Zinc phosphate corrosion protection
Blow-out proof stem
Heavy duty lever
150 psig saturated steam
Vacuum service to 29 in Hg
Cold non-shock

Instruction/Installation Manual

Specification Sheet
