Apollo™ 72-103-01

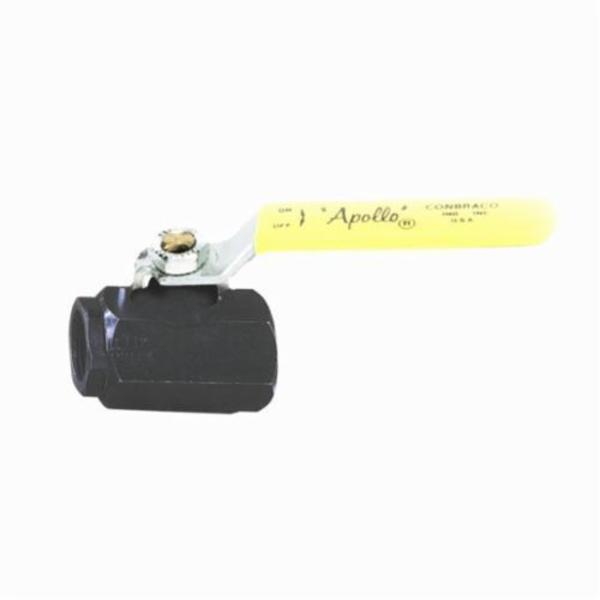

72-100 2-Piece Ball Valve, 1/2 in, FNPT, Carbon Steel Body, Full Port, Domestic

$85.84

BIPN:: APO-72-103-01
UPC:: 670750680717
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Apollo™ Ball Valve, 2-Piece, Series: 72-100, 1/2 in Nominal, FNPT, 3000 psig CWP, Full Port, Lever Actuator, Chrome Plated Carbon Steel Ball, 2.87 in Inlet to Outlet Length, 2-1/2 in Top to Inlet Center, Carbon Steel Body, Chrome Plated Carbon Steel Stem and RPTFE Seat Trim, Domestic

Type 2-Piece
Series 72-100
Nominal Size 1/2 in
End Style FNPT
Pressure Rating 3000 psig CWP
Port Type Full
Actuator Type Lever
Ball Material Chrome Plated Carbon Steel
Inlet to Outlet Length 2.87 in
Top to Inlet Center 2-1/2 in
Body Material Carbon Steel
Trim Material Chrome Plated Carbon Steel Stem and RPTFE Seat
Domestic/Import Domestic

01: Standard configuration
Barstock design
Reinforced seats
Zinc phosphate corrosion protection
Blow-out proof stem
Heavy duty lever
150 psig saturated steam
Vacuum service to 29 in Hg
Cold non-shock

Instruction/Installation Manual

Specification Sheet
