Apollo™ 72-105-01

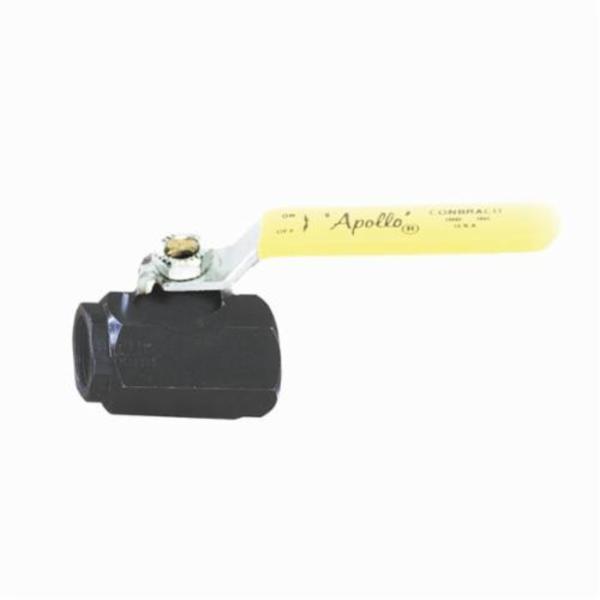

72-100 2-Piece Ball Valve, 1 in, FNPT, Carbon Steel Body, Full Port, RPTFE/MPTFE Softgoods, Domestic

$169.76

BIPN:: APO-72-105-01
UPC:: 670750680984
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Apollo™ Ball Valve, 2-Piece, Series: 72-100, 1 in Nominal, FNPT, 3000 psig CWP, Full Port, Media: Water, Lever Actuator, Carbon Steel Ball, 4.15 in Inlet to Outlet Length, 3.12 in Top to Inlet Center, Carbon Steel Body, Carbon Steel Stem and RPTFE Seat Trim, RPTFE/MPTFE Softgoods, Domestic

Type 2-Piece
Series 72-100
Nominal Size 1 in
End Style FNPT
Pressure Rating 3000 psig CWP
Port Type Full
Media Water
Actuator Type Lever
Ball Material Carbon Steel
Inlet to Outlet Length 4.15 in
Top to Inlet Center 3.12 in
Body Material Carbon Steel
Trim Material Carbon Steel Stem and RPTFE Seat
Softgoods Material RPTFE/MPTFE
Domestic/Import Domestic

Barstock design
Reinforced seats
Zinc phosphate corrosion protection
Blow-out proof stem
Heavy duty lever
Vacuum service to 29 in Hg
150 psig saturated steam
RPTFE retainer seal and MPTFE stem packing

Instruction/Installation Manual

Specification Sheet

Catalog
