Apollo™ 7340301

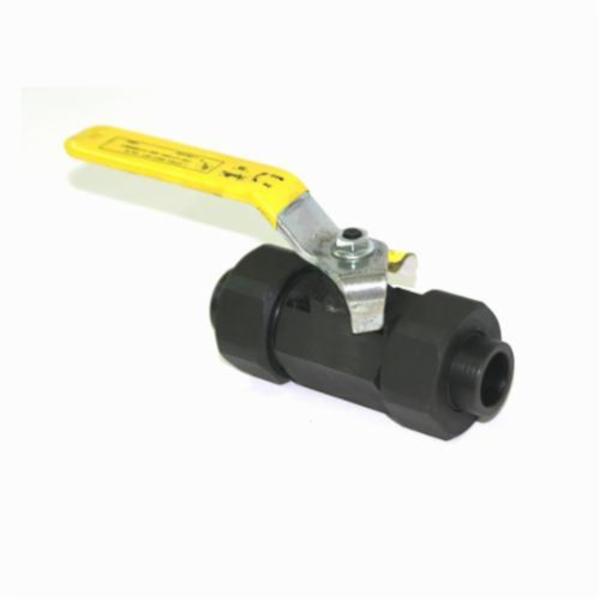

2-Piece Ball Valve, 1/2 in, Socket Weld, Carbon Steel Body, Standard Port, RPTFE Softgoods

$173.24

BIPN:: APO-73-403-01
UPC:: 670750689635
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Prop 65 - WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and/or reproductive harm - www.P65Warnings.ca.gov

Apollo™ Ball Valve, 2-Piece, Series: 73-400, 1/2 in Nominal, Socket Weld, 3000 psig CWP, Standard Port, Quarter-Turn Lever Actuator, Chrome Plated Carbon Steel Ball, 5 in Inlet to Outlet Length, 2-1/2 in Top to Inlet Center, Carbon Steel Body, Zinc Phosphate Carbon Steel Stem and RPTFE Seat Trim, RPTFE Softgoods

Type 2-Piece
Series 73-400
Nominal Size 1/2 in
End Style Socket Weld
Pressure Rating 3000 psig CWP
Port Type Standard
Actuator Type Quarter-Turn Lever
Ball Material Chrome Plated Carbon Steel
Inlet to Outlet Length 5 in
Top to Inlet Center 2-1/2 in
Body Material Carbon Steel
Trim Material Zinc Phosphate Carbon Steel Stem and RPTFE Seat
Softgoods Material RPTFE

01: Standard configuration
Heavy duty quarter-turn lever
Steel barstock design
Easy installation and maintenance
Blow-out proof stem
Zinc phosphate corrosion protection
Guide YRPV: gas shut-off valve for use with natural and manufactured gases
Guide YSTD: LP gas shut-off valve
Guide YRBX: flammable liquid shut-off valve
150 psig saturated steam
Vacuum service to 29 in Hg
Double union end socket weld ball valve
RPTFE retainer seal/union seal/stem packing
