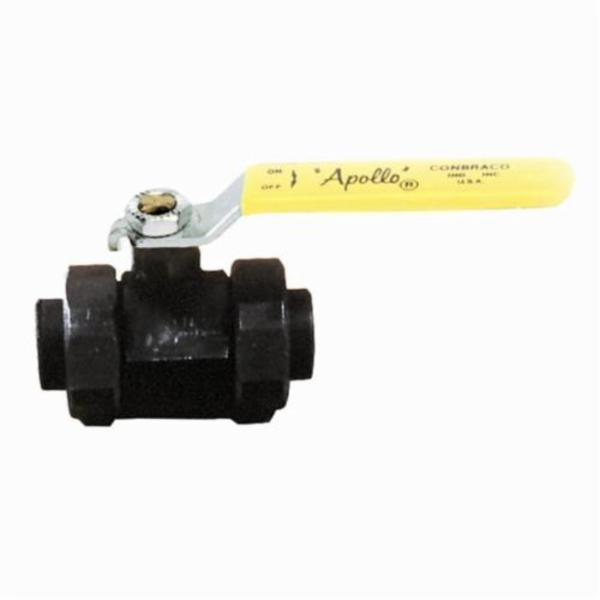

Apollo™ 7330401

2-Piece Ball Valve, 3/4 in, FNPT, Carbon Steel Body, Standard Port, RPTFE Softgoods

$231.65

BIPN:: APO-73-304-01
UPC:: 670750688621
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Prop 65 - WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and/or reproductive harm - www.P65Warnings.ca.gov

Apollo™ Ball Valve, 2-Piece, Series: 73-300, 3/4 in Nominal, FNPT, 3000 psig CWP, Standard Port, Quarter-Turn Lever Actuator, Stainless Steel Ball, 5.31 in Inlet to Outlet Length, 2.62 in Top to Inlet Center, Carbon Steel Body, Zinc Phosphate Carbon Steel Stem and RPTFE Seat Trim, RPTFE Softgoods

Type 2-Piece
Series 73-300
Nominal Size 3/4 in
End Style FNPT
Pressure Rating 3000 psig CWP
Port Type Standard
Actuator Type Quarter-Turn Lever
Ball Material Stainless Steel
Inlet to Outlet Length 5.31 in
Top to Inlet Center 2.62 in
Body Material Carbon Steel
Trim Material Zinc Phosphate Carbon Steel Stem and RPTFE Seat
Softgoods Material RPTFE

01: Standard configuration
Heavy duty quarter-turn lever
Steel barstock design
Easy installation and maintenance
Blow-out proof stem
Zinc phosphate corrosion protection
Guide YRPV: gas shut-off valve for use with natural and manufactured gases
Guide YSTD: LP gas shut-off valve
Guide YRBX: flammable liquid shut-off valve
150 psig saturated steam
Vacuum service to 29 in Hg
Double union end ball valve
RPTFE retainer seal/union seal/stem packing

Specification Sheet

Catalog
