Apollo™ 8220401

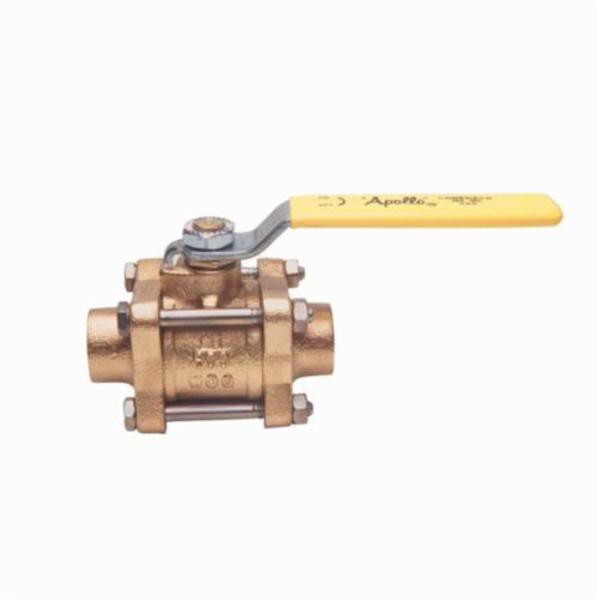

3-Piece Ball Valve, 3/4 in, Solder, Bronze Body, Full Port, RPTFE Softgoods

$89.69

BIPN:: APO-82-204-01
UPC:: 670750727429
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Prop 65 - WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and/or reproductive harm - www.P65Warnings.ca.gov

Apollo™ Ball Valve, 3-Piece, Series: 82-200, 3/4 in Nominal, Solder, 600 psi CWP, 500 deg F, Full Port, Standard Lever Actuator, Chrome Plated Brass Ball, 3.43 in Inlet to Outlet Length, 2.18 in Top to Inlet Center, Bronze Body, Chrome Plated Brass Stem and RPTFE Seat Trim, RPTFE Softgoods

The Apollo™ 82-200 and 82A240 Series is an in-line serviceable valve designed for soft soldering or brazed installations. SAE Grade Body Bolts and RPTFE seals are standard.

Type 3-Piece
Series 82-200
Nominal Size 3/4 in
End Style Solder
Pressure Rating 600 psi CWP
Temperature Rating 500 deg F
Port Type Full
Actuator Type Standard Lever
Ball Material Chrome Plated Brass
Inlet to Outlet Length 3.43 in
Top to Inlet Center 2.18 in
Body Material Bronze
Trim Material Chrome Plated Brass Stem and RPTFE Seat
Softgoods Material RPTFE

Specification Sheet
