Apollo™ 7010741
2-Piece Ball Valve, 1-1/2 in, FNPT, Bronze Body, Standard Port, RMPTFE Softgoods
- BIPN:
- APO-70-107-41
- UPC:
- 670750655326
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / EA - Each
This product is NON-RETURNABLE.
Prop 65 - WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and/or reproductive harm - www.P65Warnings.ca.gov
-

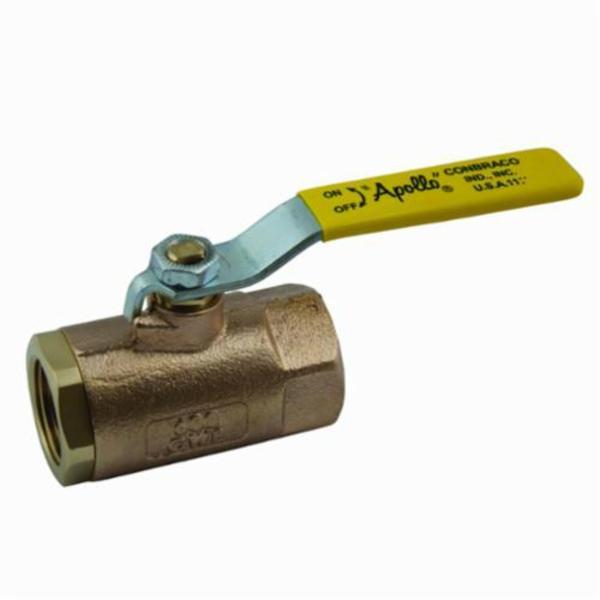

Apollo™ Ball Valve, 2-Piece, Series: 70-100, 1-1/2 in Nominal, FNPT, 600 psig CWP, 500 deg F, Standard Port, Lever Actuator, Chrome Plated Brass Ball, 4.37 in Inlet to Outlet Length, 3.06 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, RMPTFE Softgoods
The Apollo™ 70 series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
-
- Type 2-Piece
- Series 70-100
- Nominal Size 1-1/2 in
- End Style FNPT
- Pressure Rating 600 psig CWP
- Temperature Rating 500 deg F
- Port Type Standard
- Actuator Type Lever
- Ball Material Chrome Plated Brass
- Inlet to Outlet Length 4.37 in
- Top to Inlet Center 3.06 in
- Body Material Bronze
- Trim Material Brass Stem and PTFE Seat
- Softgoods Material RMPTFE
-
- 41: Automatic drain
- Premium materials and heavy duty construction
- Adjustable stem packing gland
- Blow-out proof stem
- 100% factory tested
- Reinforced seats
- Vacuum service to 29 in Hg
- 150 psig saturated steam
- Cold non-shock
- Steel zinc plated with vinyl lever and grip
- RMPTFE stem packing
