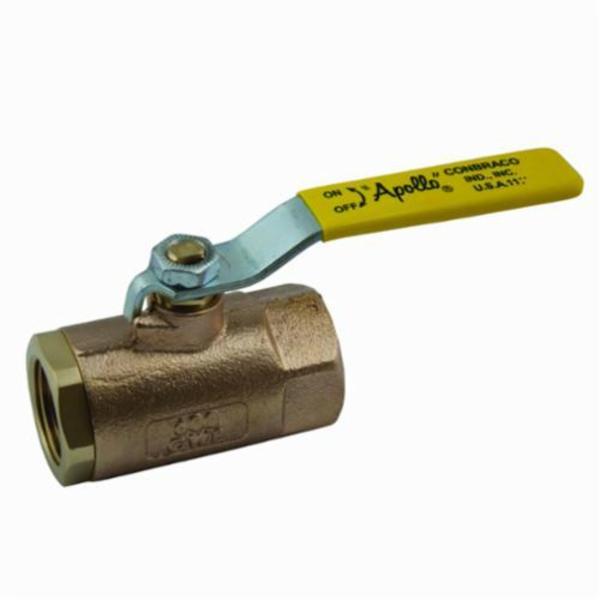

Apollo™ 70-101-10

Apollo™ Ball Valve, 2-Piece, Series: 70-100, 1/4 in Nominal, FNPT, 600 psig CWP, 500 deg F, Standard Port, Lever Actuator, Chrome Plated Brass Ball, 2.06 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, RMPTFE Softgoods, Domestic

The Apollo™ 70 series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.

• Type 2-Piece
• Series 70-100
• Nominal Size 1/4 in
• End Style FNPT
• Pressure Rating 600 psig CWP
• Temperature Rating 500 deg F
• Port Type Standard
• Actuator Type Lever
• Ball Material Chrome Plated Brass
• Inlet to Outlet Length 2.06 in
• Top to Inlet Center 1-3/4 in
• Body Material Bronze
• Trim Material Brass Stem and PTFE Seat
• Softgoods Material RMPTFE
• Domestic/Import Domestic

• 10: Stainless steel lever and nut
• Premium materials and heavy duty construction
• Adjustable stem packing gland
• Blow-out proof stem
• 100% factory tested
• Reinforced seats
• Vacuum service to 29 in Hg
• 150 psig saturated steam
• Cold non-shock
• Steel zinc plated with vinyl lever and grip
• RMPTFE stem packing
