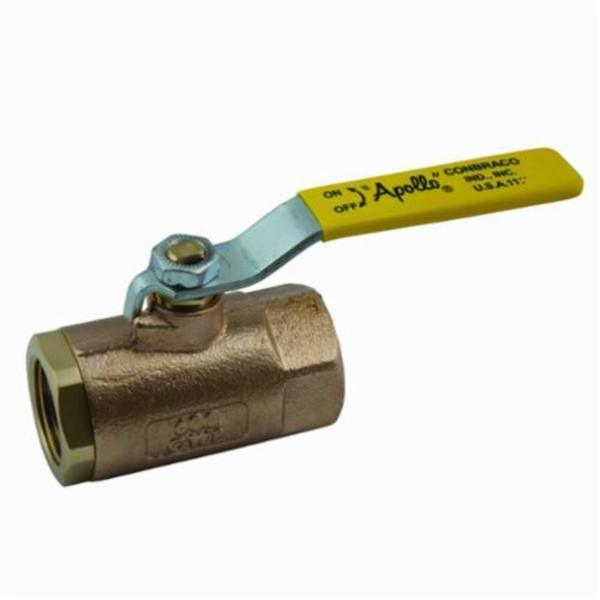

Apollo™ 70-105-10
70-100 2-Piece Ball Valve, 1 in, FNPT, Bronze Body, Standard Port, RMPTFE Softgoods, Domestic
- BIPN:
- APO-70-105-10
- UPC:
- 670750653438
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / EA - Each
-
Apollo™ Ball Valve, 2-Piece, Series: 70-100, 1 in Nominal, FNPT, 600 psig CWP, 500 deg F, Standard Port, Lever Actuator, Chrome Plated Brass Ball, 3.37 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, RMPTFE Softgoods, Domestic
The Apollo™ 70 series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
-
- Type 2-Piece
- Series 70-100
- Nominal Size 1 in
- End Style FNPT
- Pressure Rating 600 psig CWP
- Temperature Rating 500 deg F
- Port Type Standard
- Actuator Type Lever
- Ball Material Chrome Plated Brass
- Inlet to Outlet Length 3.37 in
- Top to Inlet Center 2-1/4 in
- Body Material Bronze
- Trim Material Brass Stem and PTFE Seat
- Softgoods Material RMPTFE
- Domestic/Import Domestic
-
- 10: Stainless steel lever and nut
- Premium materials and heavy duty construction
- Adjustable stem packing gland
- Blow-out proof stem
- 100% factory tested
- Reinforced seats
- Vacuum service to 29 in Hg
- 150 psig saturated steam
- Cold non-shock
- Steel zinc plated with vinyl lever and grip
- RMPTFE stem packing
