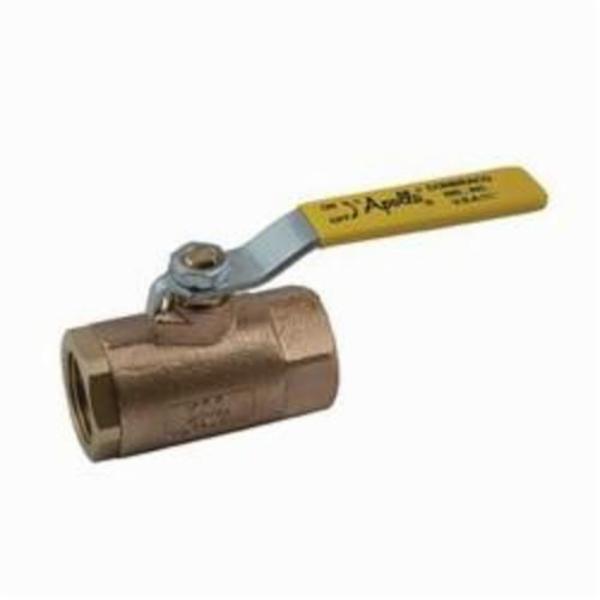

Apollo™ 7010441

2-Piece In-Line Ball Valve With Automatic Drain, 3/4 in, FNPT, Bronze Body, Standard Port, PTFE Softgoods

$45.87

BIPN:: APO-70-104-41
UPC:: 670750652424
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Prop 65 - WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and/or reproductive harm - www.P65Warnings.ca.gov

Apollo™ In-Line Ball Valve, 2-Piece, Series: 70-100, 3/4 in Nominal, FNPT, 600 psi, 500 deg F, Standard Port, 0.68 in Orifice, Latch-Lock Lever Actuator, Chrome Plated Brass Ball, 3 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, PTFE Softgoods

The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.

Type 2-Piece
Series 70-100
Nominal Size 3/4 in
End Style FNPT
Pressure Rating 600 psi
Temperature Rating 500 deg F
Port Type Standard
Orifice Size 0.68 in
Actuator Type Latch-Lock Lever
Ball Material Chrome Plated Brass
Inlet to Outlet Length 3 in
Top to Inlet Center 2.12 in
Body Material Bronze
Trim Material Brass Stem and RPTFE Seat
Softgoods Material PTFE

Premium materials and heavy duty 2-piece construction
Adjustable stem packing
Blow-out proof stem
100% factory tested
150 psi steam pressure
2-Ports/Ways
Vacuum service to 29 in hg
Zinc plated steel lever nut
B584-C84400 body
PTFE body seal
