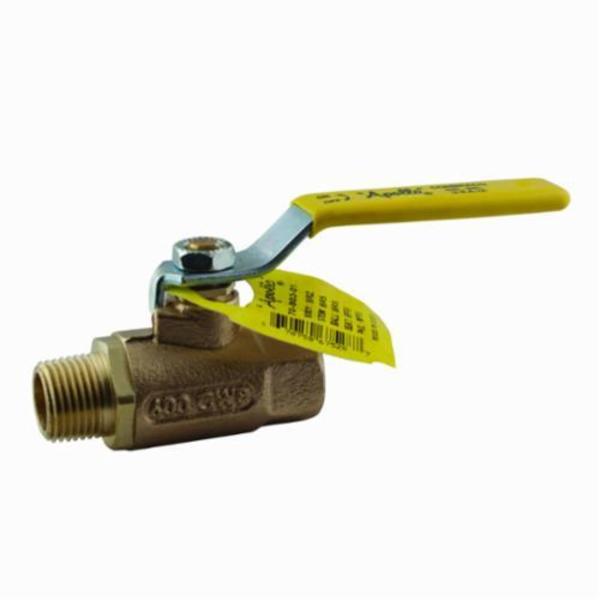

Apollo™ 7080201
2-Piece Ball Valve, 3/8 in, MNPT x FNPT, Bronze Body, Standard Port, RPTFE/MPTFE Softgoods
- BIPN:
- APO-70-802-01
- UPC:
- 670750675065
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / EA - Each
This product is NON-RETURNABLE.
Prop 65 - WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and/or reproductive harm - www.P65Warnings.ca.gov
-
Apollo™ Ball Valve, 2-Piece, Series: 70-800, 3/8 in Nominal, MNPT x FNPT, 600 psig CWP, 425 deg F, Standard Port, Lever Actuator, Bronze Ball, 2-1/2 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, RPTFE/MPTFE Softgoods
Eliminates need for extra nipple when connecting to female connection to save time and labor. Ruggedly built for lasting performance with chromium-plated ball and blow-out proof stem.
-
- Type 2-Piece
- Series 70-800
- Nominal Size 3/8 in
- End Style MNPT x FNPT
- Pressure Rating 600 psig CWP
- Temperature Rating 425 deg F
- Port Type Standard
- Actuator Type Lever
- Ball Material Bronze
- Inlet to Outlet Length 2-1/2 in
- Top to Inlet Center 1-3/4 in
- Body Material Bronze
- Trim Material Brass Stem and PTFE Seat
- Softgoods Material RPTFE/MPTFE
-
- 01: Standard configuration
- Reinforced seats
- Blow-out proof stem
- 150 psig saturated steam
- Vacuum service to 29 in Hg
- RPTFE seal and MPTFE stem packing
