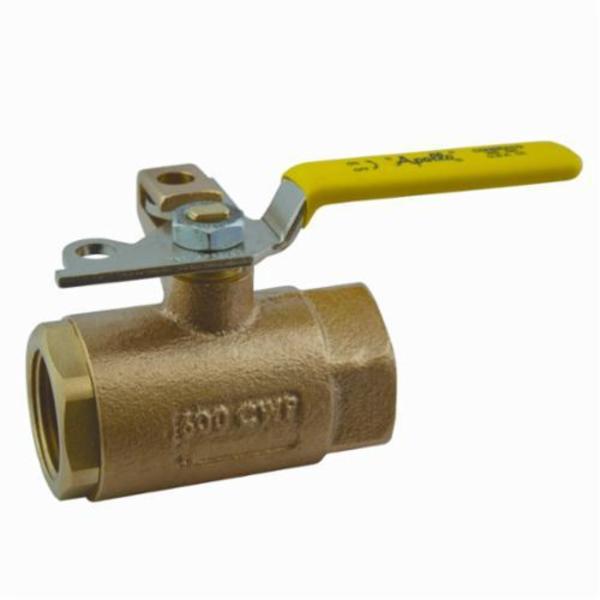

Apollo™ 7510201
2-Piece Ball Valve With Padlock, 3/8 in, FNPT, Bronze Body, Standard Port, MPTFE Softgoods
- BIPN:
- APO-75-102-01
- UPC:
- 670750690938
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / EA - Each
This product is NON-RETURNABLE.
Prop 65 - WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and/or reproductive harm - www.P65Warnings.ca.gov
-
Apollo™ Ball Valve, 2-Piece, Series: 75-100, 3/8 in Nominal, FNPT, 600 psi CWP, 50 to 200 deg F, Standard Port, Lever Actuator, Chrome Plated Brass Ball, 2-1/4 in Inlet to Outlet Length, 1.81 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, MPTFE Softgoods
This Apollo™ Ball Valve meets OSHA standards and provides for easy, safe maintenance of pneumatic tools. Valve can be padlocked in the OPEN or CLOSED position with the same hardware.
-
- Type 2-Piece
- Series 75-100
- Nominal Size 3/8 in
- End Style FNPT
- Pressure Rating 600 psi CWP
- Temperature Rating 50 to 200 deg F
- Port Type Standard
- Actuator Type Lever
- Ball Material Chrome Plated Brass
- Inlet to Outlet Length 2-1/4 in
- Top to Inlet Center 1.81 in
- Body Material Bronze
- Trim Material Brass Stem and RPTFE Seat
- Softgoods Material MPTFE
-
- Blow-out proof stem design
- Hardened ball for wear resistance
- May be padlocked in open or closed position with no change of hardware
- Zinc plated with vinyl steel lever and grip
- Chrome plated ASTM B16 brass ball
- ASTM B16/B927 C27451 brass retainer
- ASTM B16 brass gland nut/stem
- Zinc plated steel lever nut
- UNS C84400 B584 bronze body
- 150 psi steam working pressure
- MPTFE stem packing
