Apollo™ 70-148-10

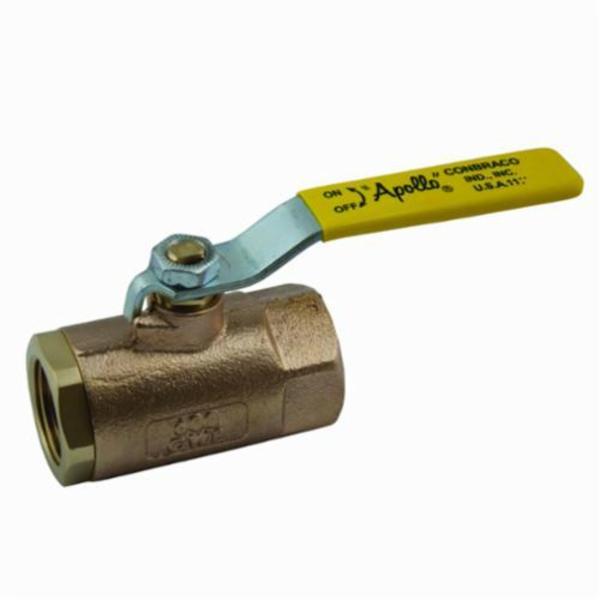

70-140 2-Piece Ball Valve, 2 in, FNPT, Bronze Body, Standard Port, PTFE/MPTFE Softgoods, Domestic

$292.21

BIPN:: APO-70-148-10
UPC:: 670750662782
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Apollo™ Ball Valve, 2-Piece, Series: 70-140, 2 in Nominal, FNPT, 600 psig CWP, 500 deg F, Standard Port, Lever Actuator, Stainless Steel Ball, 4.68 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, PTFE/MPTFE Softgoods, Domestic

The Apollo™ 70 series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.

Type 2-Piece
Series 70-140
Nominal Size 2 in
End Style FNPT
Pressure Rating 600 psig CWP
Temperature Rating 500 deg F
Port Type Standard
Actuator Type Lever
Ball Material Stainless Steel
Inlet to Outlet Length 4.68 in
Top to Inlet Center 3-1/4 in
Body Material Bronze
Trim Material 316 Stainless Steel Stem and RPTFE Seat
Softgoods Material PTFE/MPTFE
Domestic/Import Domestic

10: Stainless steel lever and nut
Premium materials and heavy duty construction
Adjustable stem packing gland
Blow-out proof stem
100% factory tested
Vacuum service to 29 in Hg
Zinc plated with vinyl steel lever and grip
150 psig saturated steam
Cold non-shock
PTFE seal and MPTFE stem packing

Instruction/Installation Manual

Catalog

Specification Sheet
