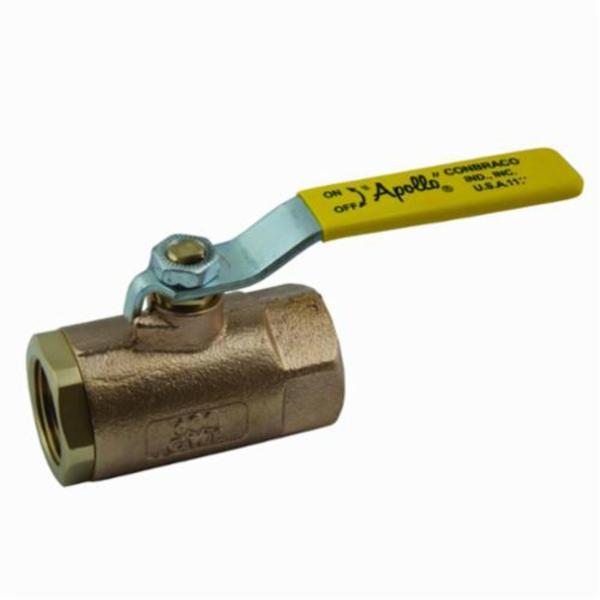

Apollo™ 70-144-10

Apollo™ Ball Valve, 2-Piece, Series: 70-140, 3/4 in Nominal, FNPT, 600 psig CWP, 500 deg F, Standard Port, Media: Water, Lever Actuator, 316 Stainless Steel Ball, 3 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, MPTFE/PTFE Softgoods, Domestic

The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.

• Type 2-Piece
• Series 70-140
• Nominal Size 3/4 in
• End Style FNPT
• Pressure Rating 600 psig CWP
• Temperature Rating 500 deg F
• Port Type Standard
• Media Water
• Actuator Type Lever
• Ball Material 316 Stainless Steel
• Inlet to Outlet Length 3 in
• Top to Inlet Center 2.12 in
• Body Material Bronze
• Trim Material 316 Stainless Steel Stem and RPTFE Seat
• Softgoods Material MPTFE/PTFE
• Domestic/Import Domestic

• Premium materials and heavy duty construction
• Adjustable stem packing gland
• Blow-out proof stem
• Vacuum service to 29 in Hg
• Steel, zinc plated with vinyl lever and grip
• ASTM B584-C84400 retainer
• ASTM B16 brass gland nut
• Steel, zinc plated lever nut
• Stainless steel lever and nut
• 150 psig saturated steam
• MPTFE stem packing and PTFE body seal
