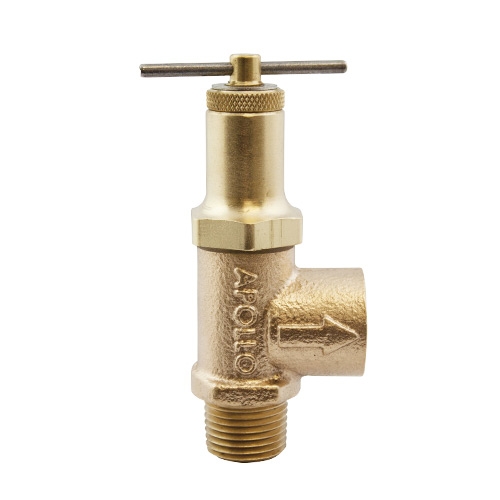

Apollo™ 16-501-25

Relief Bypass Valve, 1/2" FNPT x MNPT, 50 to 250 psi, Bronze Body

$59.49

BIPN:: APO-16-501-25
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Adjustable relief valves protect equipment by providing low volume liquid relief orbypass control. Excess volume may be discharged back to the low pressure source. Ideal for agricultural sprayers and simple commercial or industrial pressurized systems.NOT FOR POTABLE WATER USE PER FEDERAL PUBLIC LAW 111-380

Type Relief
Nominal Size 1/2 in
End Style FNPT x MNPT
Pressure Rating 50 to 250 psi
Temperature Rating 200 deg F
Inlet to Outlet Length 1.29 in
Top to Inlet Center 4.12 in
Body Material Bronze
Softgoods Material PTFE

Cast bronze body, stainless steel springs
Knurled locknut locks pressure adjustment
Viton stem seal, polypropylene body gasket
Maximum recommended service temperature 200° F
