Apollo™ 61-508-01

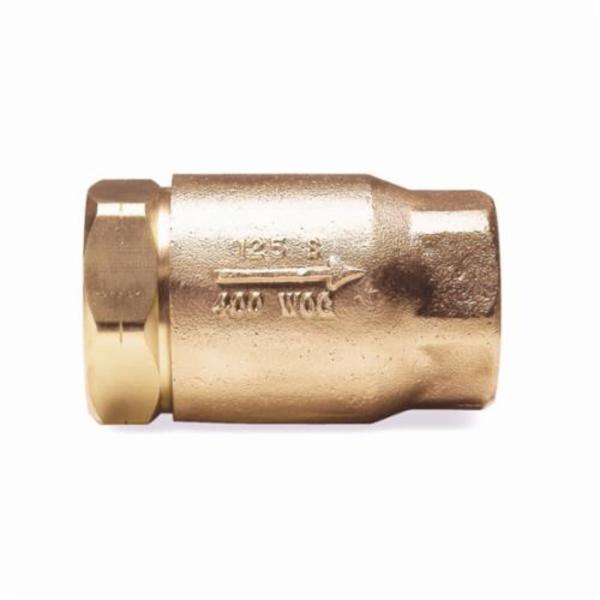

CVBE2 Standard In-Line Soft Seat Check Valve, 2 in, FNPT, 81 gpm, Cast Bronze Body, Domestic
- BIPN:
- APO-61-508-01
- UPC:
- 670750632785
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / EA - Each
Prop 65 - WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and/or reproductive harm - www.P65Warnings.ca.gov
-
Apollo™ In-Line Soft Seat Check Valve, Standard, Series: 61-500, 2 in Nominal, FNPT, 400 psi, 250 deg F, 81 gpm, Spring Loaded Actuator, 6 in Inlet to Outlet Length, Cast Bronze Body, EPR/EPDM Rubber Seat/Stainless Steel Spring Trim, 3.69 in H, Domestic
The Apollo™ CVBE soft seat check valves offer reliable tight shut-off protection against reverse flow and corrosion resistance using proven ASTM quality materials made in the USA.
-
- Type Standard
- Series 61-500
- Nominal Size 2 in
- End Style FNPT
- Pressure Rating 400 psi
- Temperature Rating 250 deg F
- Flow Rate 81 gpm
- Actuator Type Spring Loaded
- Inlet to Outlet Length 6 in
- Body Material Cast Bronze
- Trim Material EPR/EPDM Rubber Seat/Stainless Steel Spring
- Dimensions 3.69 in H
- Domestic/Import Domestic
-
- Soft seat allows more resistance to vibration and may be installed in both horizontal and vertical upward flow applications
- Resilient EPR soft seat
- Superior shut-off
- Spring actuated
- 0.5 psig cracking pressure
