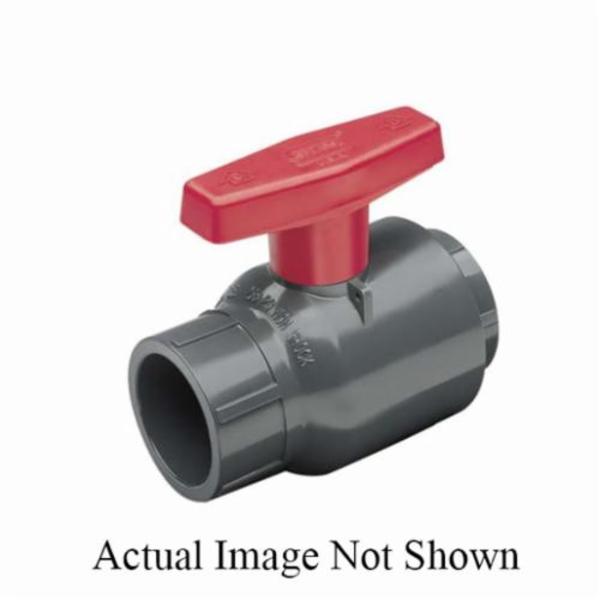

Spears® 2131-015

Spears® Ball Valve, Regular Style, Series: Compact, 1-1/2 in Nominal, FNPT, 235 psi, 140 deg F, Media: Water, 5-5/8 in Inlet to Outlet Length, 3-11/16 in Top to Inlet Center, PVC Body, PVC Stem Trim, FKM Softgoods, Gray, Domestic

All thermoplastic ball valves shall be Compact sealed unit type constructed from PVC Type I, ASTM D 1784 Cell Classification 12454 or CPVC Type IV, Cell Classification 23447. All O-rings shall be EPDM or FKM. All valves shall have Safe-T-Shear® stem and Polypropylene handle. All EPDM valves shall be certified by NSF International for use in potable water service. All 1/2 in to 2 in valves shall be pressure rated at 235 psi, all 3 in to 6 in and all flanged valves shall be pressure rated at 150 psi for water at 73 deg F, as manufactured by Spears® Manufacturing Company.

• Type Regular Style
• Series Compact
• Nominal Size 1-1/2 in
• End Style FNPT
• Pressure Rating 235 psi
• Temperature Rating 140 deg F
• Media Water
• Inlet to Outlet Length 5-5/8 in
• Top to Inlet Center 3-11/16 in
• Body Material PVC
• Trim Material PVC Stem
• Softgoods Material FKM
• Color Gray
• Domestic/Import Domestic

• Chemical and corrosion resistant PVC construction
• High impact polypropylene handle
• SCH 80/XH full-bore design
• Spears® single O-Ring Safe-T-Shear® stem design
• Self adjusting PTFE floating seat design
• Suitable for vacuum service
• Assembled with silicone-free, water soluble lubricant
• Maintenance-free sealed unit
• Not for distribution of compressed air or gas
• FKM O-ring
