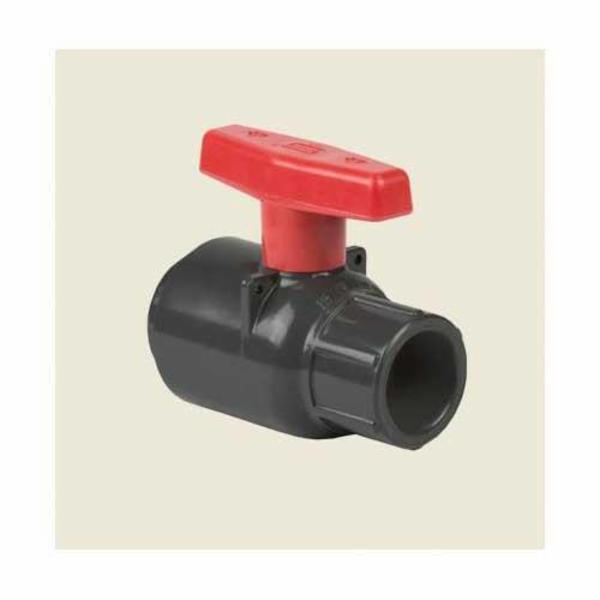

Spears® 2132-010

Spears® Regular Ball Valve, Compact, 1 in Nominal, Socket, 235 psi, 140 deg F, T-Handle Actuator, PVC Ball, 4-7/16 in Inlet to Outlet Length, 2-7/8 in Top to Inlet Center, PVC Body, PVC Stem and PTFE Seat Trim, FKM Softgoods, Gray, Domestic

This heavy bodied, quarter-turn shut-off valve is popular where maintenance-free installations are desired for a variety of chemical, industrial and OEM applications. Factory-adjusted sealed units are available in IPS sizes 1/2 in through 2 in, with choice of either socket or threaded end connectors.

• Type Compact
• Nominal Size 1 in
• End Style Socket
• Pressure Rating 235 psi
• Temperature Rating 140 deg F
• Actuator Type T-Handle
• Ball Material PVC
• Inlet to Outlet Length 4-7/16 in
• Top to Inlet Center 2-7/8 in
• Body Material PVC
• Trim Material PVC Stem and PTFE Seat
• Softgoods Material FKM
• Color Gray
• Domestic/Import Domestic

• Heavy bodied PVC or CPVC construction
• High impact polypropylene handle
• Full SCH 80/XH bore
• Safe-T-Shear® stem
• FKM O-ring
