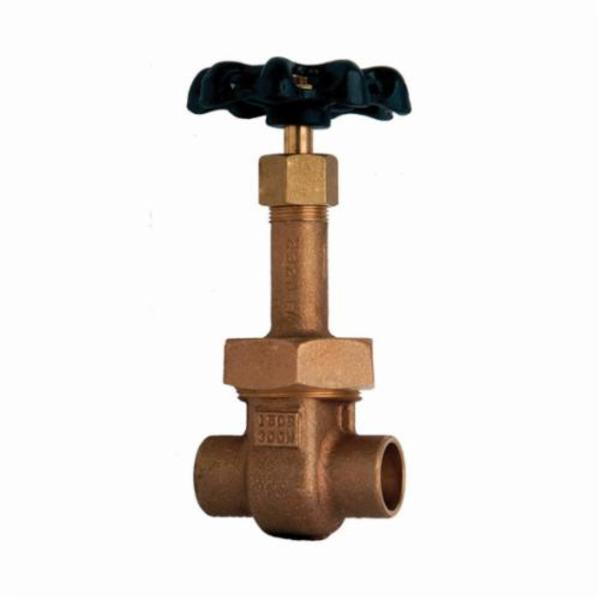

Hammond Valve 648000114

Hammond Valve Gate Valve, Series: IB648, 1-1/4 in Nominal, Solder, 300 psi WOG, Handwheel Actuator, 3.38 in Inlet to Outlet Length, 8.56 in Top to Inlet Center, Bronze Body, Bronze Trim, Graphite Packing, 3.13 in Hand Wheel

• Series IB648
• Nominal Size 1-1/4 in
• End Style Solder
• Pressure Rating 300 psi WOG
• Actuator Type Handwheel
• Inlet to Outlet Length 3.38 in
• Top to Inlet Center 8.56 in
• Body Material Bronze
• Trim Material Bronze
• Softgoods Material Graphite Packing
• Hand Wheel Diameter 3.13 in

• 150 psi WSP
• Solid bronze wedge disc
• Rising stem
• Union bonnet
• Not intended for use in potable water
