Hammond Valve 646000100

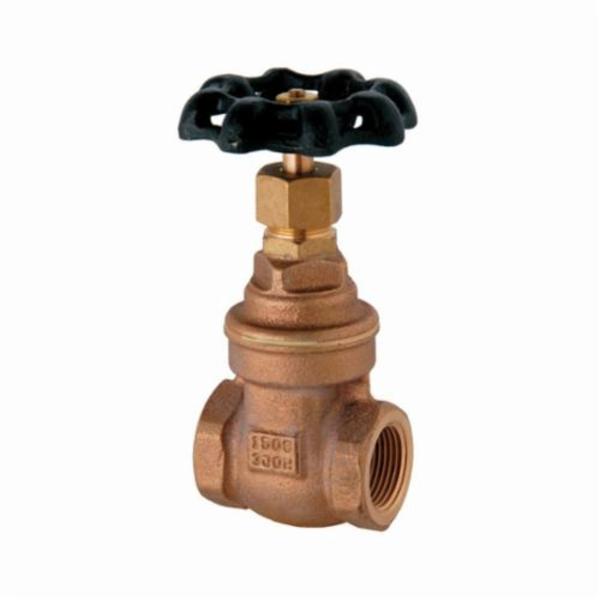

Hammond Valve Gate Valve, Series: IB646, 1 in Nominal, Thread, 300 psi WOG, Handwheel Actuator, 2.56 in Inlet to Outlet Length, 5 in Top to Inlet Center, Bronze Body, Bronze Trim, Graphite Packing, 2-3/4 in Hand Wheel

• Series IB646
• Nominal Size 1 in
• End Style Thread
• Pressure Rating 300 psi WOG
• Actuator Type Handwheel
• Inlet to Outlet Length 2.56 in
• Top to Inlet Center 5 in
• Body Material Bronze
• Trim Material Bronze
• Softgoods Material Graphite Packing
• Hand Wheel Diameter 2-3/4 in

• 150 psi WSP
• Solid bronze wedge disc
• Non-rising stem
• Threaded bonnet
• Not intended for use in potable water
