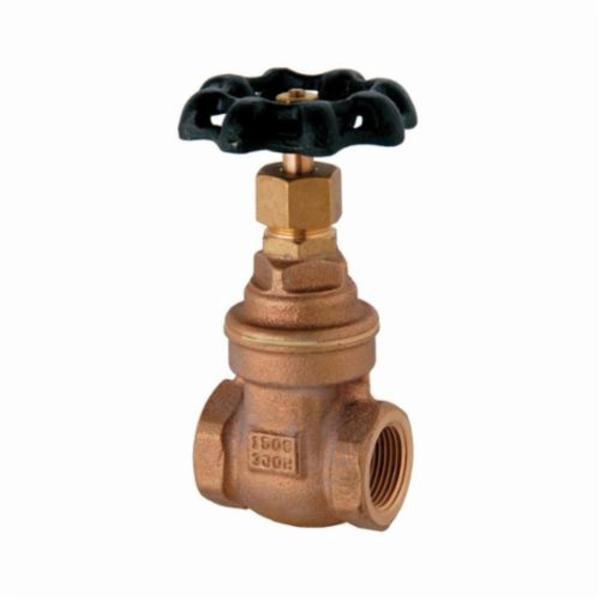

Hammond Valve 646000034

Hammond Valve Gate Valve, Series: IB646, 3/4 in Nominal, Thread, 300 psi WOG, Handwheel Actuator, 2.13 in Inlet to Outlet Length, 4.38 in Top to Inlet Center, Bronze Body, Bronze Trim, Graphite Packing, 2-1/2 in Hand Wheel

• Series IB646
• Nominal Size 3/4 in
• End Style Thread
• Pressure Rating 300 psi WOG
• Actuator Type Handwheel
• Inlet to Outlet Length 2.13 in
• Top to Inlet Center 4.38 in
• Body Material Bronze
• Trim Material Bronze
• Softgoods Material Graphite Packing
• Hand Wheel Diameter 2-1/2 in

• 150 psi WSP
• Solid bronze wedge disc
• Non-rising stem
• Threaded bonnet
• Not intended for use in potable water
