Hammond Valve 413050112

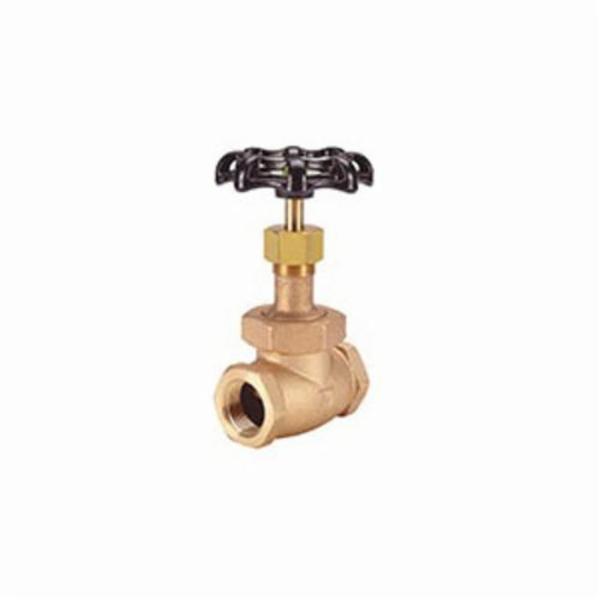

Hammond Valve 0413050112 IB413T Globe Valve, 1-1/2 in, Thread, Bronze Body, Handwheel Actuator

$475.30

BIPN:: HVA-IB413T-112
UPC:: 84738104384
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Hammond Valve Globe Valve, Series: IB413T, 1-1/2 in Nominal, Thread, 300 psi WOG, Handwheel Actuator, 4-1/2 in Inlet to Outlet Length, 7.13 in Top to Inlet Center, Bronze Body, Bronze Trim, Graphite Packing, 3-3/4 in Hand Wheel

Series IB413T
Nominal Size 1-1/2 in
End Style Thread
Pressure Rating 300 psi WOG
Actuator Type Handwheel
Inlet to Outlet Length 4-1/2 in
Top to Inlet Center 7.13 in
Body Material Bronze
Trim Material Bronze
Softgoods Material Graphite Packing
Hand Wheel Diameter 3-3/4 in

150 psi WSP
300 psi WOG non-shock
Teflon disc
Union bonnet
Not intended for use in potable water

Specification Sheet

Instruction/Installation Manual

Catalog
