Apollo™ 16-202-03

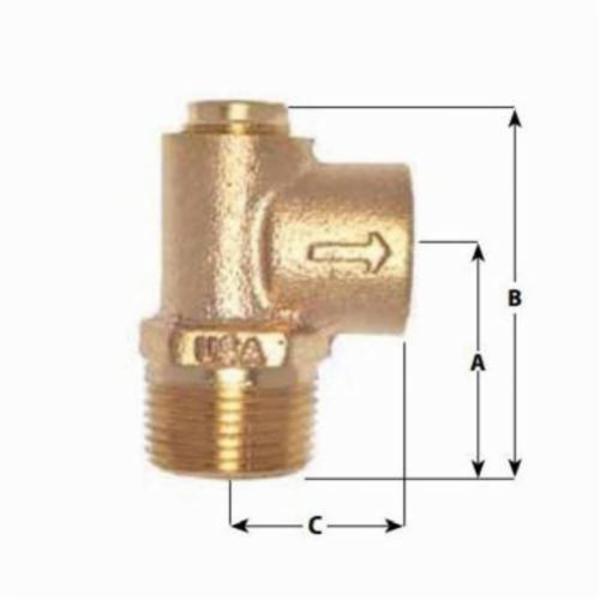

16-202 Pressure Relief Valve, 1/2 in, Male x Female, 100 psig, Bronze Body

$25.54

BIPN:: APO-16-202-03
UPC:: 670750500473
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Apollo™ Pressure Relief Valve, Series: 16-200, 1/2 in Nominal, Male x Female, 100 psig, 120 deg F, Media: Air/Oil/Liquid/Water, Bronze Body, Silicon Soft Seat Softgoods

Economical relief valves for general purpose non-code overpressure protection and bypass relief applications. Applications include liquid bypass or thermal expansion relief of well pumps, tanks, fire protection systems and all types of water or liquid piping systems. Not intended for steam service.

Series 16-200
Nominal Size 1/2 in
End Style Male x Female
Pressure Rating 100 psig
Temperature Rating 120 deg F
Media Air/Oil/Liquid/Water
Body Material Bronze
Softgoods Material Silicon Soft Seat

Standard pressure settings from 50 to 175 psi
Cast bronze body, stainless steel spring
Silicone soft seat ensures seat tightness, extended service life
All valves are 100% factory tested
Maximum recommended service temperature 120 deg F

Catalog

Specification Sheet
