Spears® 2239-010

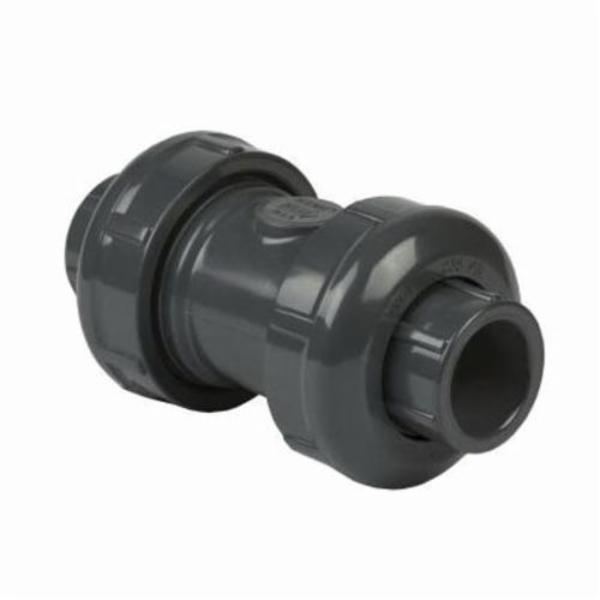

Spears® Ball Check Valve, True Union Regular Style, 1 in Nominal, Socket/FNPT, 235 psi, 73 deg F, Media: Water, 6-1/2 in Inlet to Outlet Length, PVC Ball, PVC Body, FKM Softgoods, Gray, 3-7/16 in H, Domestic

All thermoplastic check valves shall be True Union Ball type constructed from PVC Type I, ASTM D1784 Cell Classification 12454 or CPVC Type IV, ASTM D1784 Cell Classification 23447. All O-rings shall be EPDM or FKM. All valve union nuts shall have Buttress threads. All valve components shall be replaceable. All EPDM valves shall be certified by NSF International for use in potable water service. All 1/2 to 2 in valves shall be pressure rated at 235 psi and all 2-1/2 to 6 in and all flanged valves shall be pressure rated at 150 psi for water at 73 deg F, as manufactured by Spears® Manufacturing Company.

• Type True Union Regular Style
• Nominal Size 1 in
• End Style Socket/FNPT
• Pressure Rating 235 psi
• Temperature Rating 73 deg F
• Media Water
• Inlet to Outlet Length 6-1/2 in
• Ball Material PVC
• Body Material PVC
• Softgoods Material FKM
• Color Gray
• Dimensions 3-7/16 in H
• Domestic/Import Domestic

• Chemical and corrosion resistant PVC construction
• Strong, buttress thread union nuts
• Fully serviceable, replaceable components
• Uses standard O-Ring seat
• Suitable for either horizontal or vertical installations and vacuum service
• Assembled with silicone free, water soluble lubricant
• FKM O-ring
