Spears® 2621-010

Spears® Utility Ball Valve, 1 in Nominal, FNPT, 150 psi, 140 deg F, T-Handle Actuator, PVC Ball, 3-3/8 in Inlet to Outlet Length, 2-7/16 in Top to Inlet Center, PVC Body, PVC Stem Trim, EPDM Softgoods, White, Domestic

A high quality, economical quarter-turn shut-off valve designed for irrigation, pool and spa, and general purpose applications. IPS sizes 1/2 to 2 in available in PVC White, PVC Gray or CPVC with socket or threaded end connectors. Sizes 3 to 4 in available in PVC White with socket or threaded end connectors. 6 in size available in PVC White with socket end connectors and high efficiency lever style handle for easier operation.

• Nominal Size 1 in
• End Style FNPT
• Pressure Rating 150 psi
• Temperature Rating 140 deg F
• Actuator Type T-Handle
• Ball Material PVC

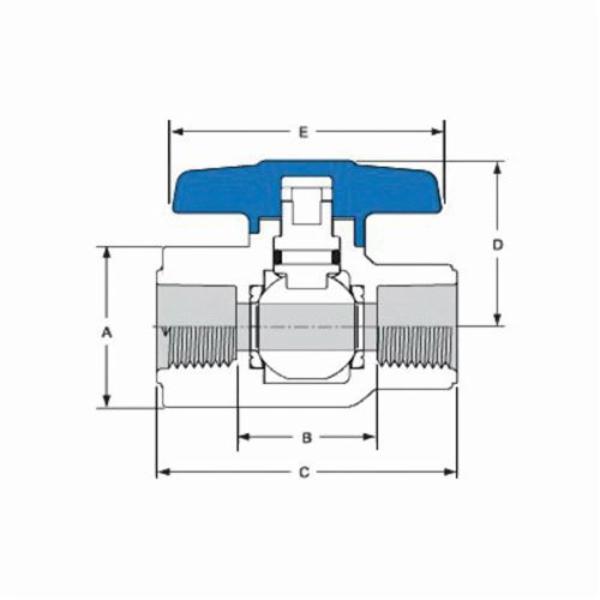

• Inlet to Outlet Length 3-3/8 in
• Top to Inlet Center 2-7/16 in
• Body Material PVC
• Trim Material PVC Stem
• Softgoods Material EPDM
• Color White
• Domestic/Import Domestic

• PVC white, PVC gray or CPVC construction
• 1-piece sealed unit
• Full SCH 80/XH bore
• High impact polypropylene handle
• Safe-T-Shear® stem
• EPDM O-ring
