Proto® J1223MASD

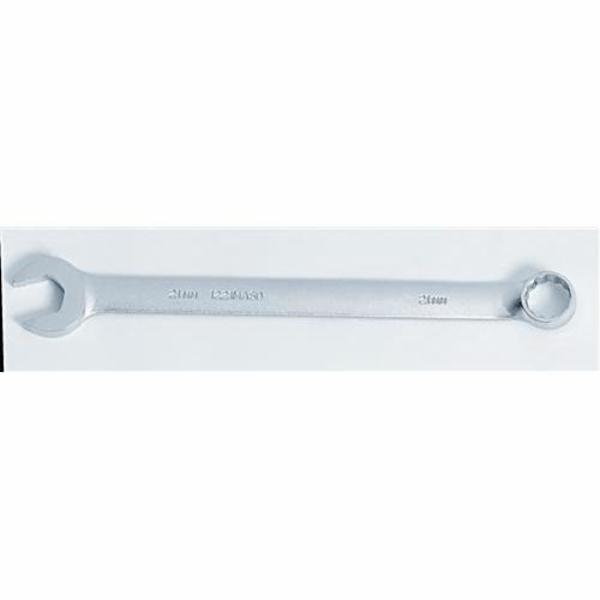

Proto® TorquePlus™ J1223MASD Anti-Slip Design Combination Wrench, Metric, 23 mm, 12 Points, 15 deg Offset, 12 in OAL, Alloy Steel, Satin, ASME B107.100, ANSI B107.9
- BIPN:
- PRO-J1223MASD
- UPC:
- 662679073275
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / EA - Each
-
Proto® TorquePlus™ Combination Wrench, Anti-Slip Design, Measurement System: Metric, Spline Wrench, 23 mm Wrench Opening, 12 Points, 12 in Overall Length, 15 deg Offset, 48.2 mm Open End Width, 10.3 mm Open End Thickness, 34 mm Box End Width, 13.9 mm Box End Thickness, 15 deg Head, ASME B107.100, ANSI B107.9 Specifications Met, 28.5 mm Throat Depth, Oval/Slip Resistant Grip/Straight Handle, Alloy Steel, Satin
-
- Type Anti-Slip Design
- Measurement System Metric
- Wrench Type Spline
- Wrench Opening 23 mm
- Number of Points 12
- Overall Length 12 in
- Offset Angle 15 deg
- Open End Width 48.2 mm
- Open End Thickness 10.3 mm
- Box End Width 34 mm
- Box End Thickness 13.9 mm
- Head Angle 15 deg
- Specifications Met ASME B107.100, ANSI B107.9
- Throat Depth 28.5 mm
- Handle Type Oval/Slip Resistant Grip/Straight
- Material Alloy Steel
- Finish/Coating Satin
-
- Satin finish provides corrosion resistance and a slip resistant grip
- 12 point box end allows for fine indexing, helping to improve speed and access
- Fits 4, 6 and 12 point fasteners
- Anti-slip design (ASD) open end
- Metric sizes 9 mm and smaller and sizes 36 mm and larger do not have the ASD feature
- Box ends incorporate the TorquePlus™ system
