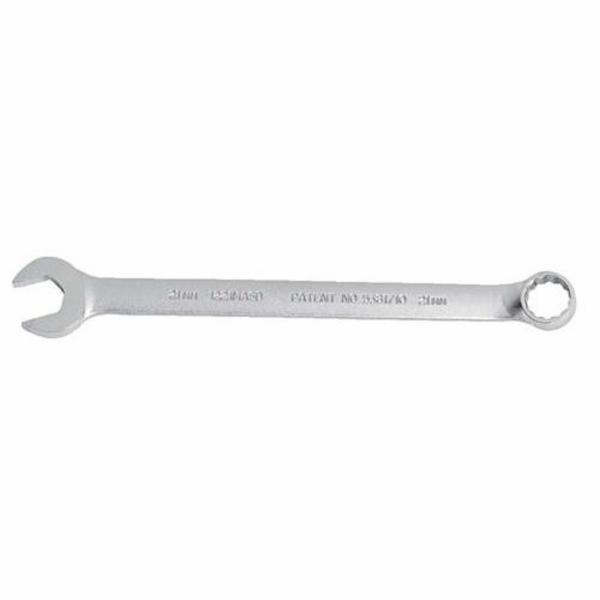

Proto® J1209MA

Proto® TorquePlus™ Combination Wrench, Anti-Slip Design, Measurement System: Metric, 9 mm Wrench Opening, 12 Points, 5 in Overall Length, 15 deg Offset, 19.1 mm Open End Width, 4.7 mm Open End Thickness, 13.9 mm Box End Width, 6.8 mm Box End Thickness, 15 deg Head, ASME B107.100, ANSI B107.9 Specifications Met, 10.3 mm Throat Depth, Slip Resistant Grip Handle, Alloy Steel, Satin

• Type Anti-Slip Design
• Measurement System Metric
• Wrench Opening 9 mm
• Number of Points 12
• Overall Length 5 in
• Offset Angle 15 deg
• Open End Width 19.1 mm
• Open End Thickness 4.7 mm
• Box End Width 13.9 mm
• Box End Thickness 6.8 mm
• Head Angle 15 deg
• Specifications Met ASME B107.100, ANSI B107.9
• Throat Depth 10.3 mm
• Handle Type Slip Resistant Grip
• Material Alloy Steel
• Finish/Coating Satin

• Satin finish provides corrosion resistance and a slip resistant grip
• 12 point box end allows for fine indexing, helping to improve speed and access
• Fits 4, 6 and 12 point fasteners
• Anti-slip design open end
• Metric sizes 9mm and smaller and sizes 36mm and larger do not have the ASD feature
• Box ends incorporate the TorquePlus™ system
