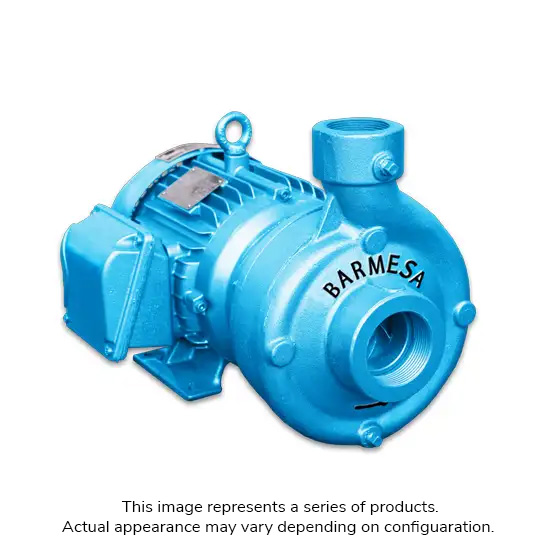

Barmesa® IB1½-2-4

Name: END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 2 HP, 3 PHASE, 1750 RPM, TEFC ENCLSURE (BRM-IB1-1/2-2-4-@)
Brand: Barmesa®
SKU: BRM-IB1-1/2-2-4
Price: 1763.33 USD
Availability: InStock

1-1/2" NPT Centrifugal Pump, 2" Suction, 2 hp @ 1750 rpm, 3-Phase, Cast Iron Casing, SS Impeller, TEFC (IE3) Motor Enclosure

$1,763.33

BIPN:: BRM-IB1-1/2-2-4
Availability:: Typically Ships 7 - 21 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Type Heavy-Duty Industrial
Series IB
Motor Type Electric Motor
Motor Connection Type Close-Coupled
Inlet Size 2 in FNPT
Outlet Size 1-1/2 in FNPT
Liquid Temperature Rating 160 deg F (max)
Pump Casing Material Cast Iron ASTM A-48 Class 30
Impeller Type Closed, Dynamically Balanced
Impeller Material 304 Stainless Steel
Seal Type Single Mechanical
Seal Material Ceramic, Carbon, Buna-N
Hardware Material Carbon Steel
Horsepower 2 hp @ 1750 rpm
Voltage Rating 3P - 60 Hz
Motor Enclosure Type TEFC Premium Efficiency (IE3)
Dimensions 17 in L x 11 in W x 12 in H

Data Sheet

Owner's Manual

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 1 HP, 3 PHASE, 1750 RPM, TEFC ENCLSURE (BRM-IB1-1/2-1-4-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 1 hp @ 1750 rpm, 3-Phase, Cast Iron Casing, SS Impeller, TEFC (IE3) Motor Enclosure

$1,580.77

BIPN: BRM-IB1-1/2-1-4 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 1.5 HP, 3 PHASE, 1750 RPM, TEFC ENCLSURE (BRM-IB1-1/2-1.5-4-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 1.5 hp @ 1750 rpm, 3-Phase, Cast Iron Casing, SS Impeller, TEFC (IE3) Motor Enclosure

$1,731.32

BIPN: BRM-IB1-1/2-1.5-4 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 2 HP, 3 PHASE, 3500 RPM, TEFC ENCLSURE (BRM-IB1-1/2-2-2-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 2 hp @ 3500 rpm, 3-Phase, Cast Iron Casing, SS Impeller, TEFC (IE3) Motor Enclosure

$1,884.37

BIPN: BRM-IB1-1/2-2-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 2 HP, 3 PHASE, 1750 RPM, TEFC ENCLSURE (BRM-IB2-2-4-@)

2" NPT Centrifugal Pump, 2-1/2" Suction, 2 hp @ 1750 rpm, 3-Phase, Cast Iron Casing, SS Impeller, TEFC (IE3) Motor Enclosure

$2,016.69

BIPN: BRM-IB2-2-4 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 3 HP, 3 PHASE, 3500 RPM, TEFC ENCLSURE (BRM-IB1-1/2-3-2-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 3 hp @ 3500 rpm, 3-Phase, Cast Iron Casing, SS Impeller, TEFC (IE3) Motor Enclosure

$2,037.41

BIPN: BRM-IB1-1/2-3-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 2 HP, 3 PHASE, 1750 RPM, TEFC ENCLSURE (BRM-IB2-1/2-2-4-@)

2-1/2" NPT Centrifugal Pump, 3" Suction, 2 hp @ 1750 rpm, 3-Phase, Cast Iron Casing, SS Impeller, TEFC (IE3) Motor Enclosure

$2,157.52

BIPN: BRM-IB2-1/2-2-4 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 1.5 HP, 3 PHASE, 3500 RPM, TEFC ENCLSURE (BRM-IB1-1/2-1.5-2-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 1.5 hp @ 3500 rpm, 3-Phase, Cast Iron Casing, SS Impeller, TEFC (IE3) Motor Enclosure

$1,657.99

BIPN: BRM-IB1-1/2-1.5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 3 HP, 1 PHASE, 3500 RPM, TEFC ENCLSURE (BRM-IB1-1/2-3-2-1-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 3 hp @ 3500 rpm, 1-Phase, Cast Iron Casing, SS Impeller, TEFC (IE3) Motor Enclosure

$2,942.72

BIPN: BRM-IB1-1/2-3-2-1 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 5 HP, 3 PHASE, 3500 RPM, TEFC ENCLSURE (BRM-IB1-1/2-5-2-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 5 hp @ 3500 rpm, 3-Phase, Cast Iron Casing, SS Impeller, TEFC (IE3) Motor Enclosure

$2,356.72

BIPN: BRM-IB1-1/2-5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each
