Barmesa® IA1-3-2-1

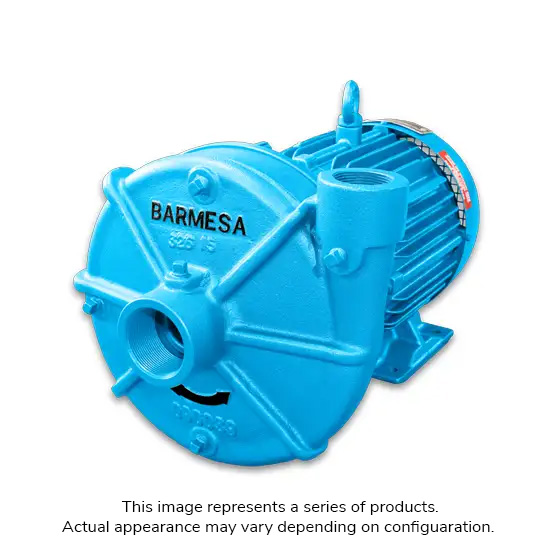

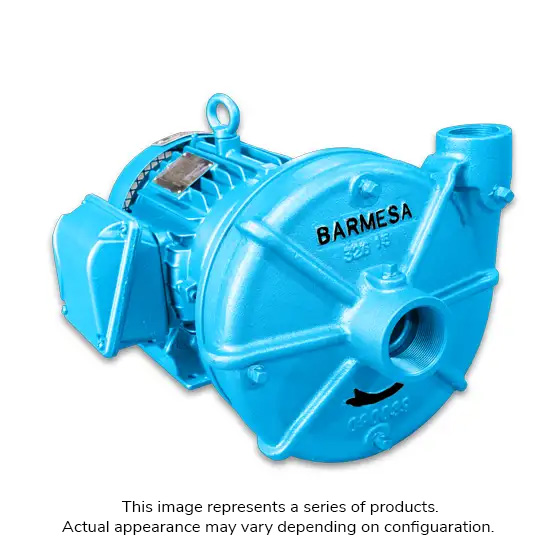

Name: END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 3 HP, 1 PHASE, 3500 RPM, TEFC ENCLOSURE (BRM-IA1-3-2-1-@)
Brand: Barmesa®
SKU: BRM-IA1-3-2-1
Price: 2906.1 USD
Availability: InStock

1" NPT Centrifugal Pump, 1-1/2" Suction, 3 hp @ 3500 rpm, 1-Phase, Cast Iron, TEFC (IE3) Motor Enclosure

$2,906.10

BIPN:: BRM-IA1-3-2-1
Availability:: Typically Ships 7 - 21 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Type Heavy-Duty Industrial
Series IA
Motor Type Electric Motor
Motor Connection Type Close-Coupled
Inlet Size 1-1/2 in FNPT
Outlet Size 1 in FNPT
Liquid Temperature Rating 160 deg F (max)
Pump Casing Material Cast Iron ASTM A-48 Class 30
Impeller Type Closed, Dynamically Balanced
Impeller Material Cast Iron ASTM A-48 Class 30
Seal Type Single Mechanical
Seal Material Ceramic, Carbon, Buna-N
Hardware Material Carbon Steel
Horsepower 3 hp @ 3540 rpm
Voltage Rating 1P - 60 Hz
Motor Enclosure Type TEFC Premium Efficiency (IE3)
Dimensions 20 in L x 12 in W x 9 in H

Data Sheet

Owner's Manual

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 3 HP, 3 PHASE, 3500 RPM, TEFC ENCLOSURE (BRM-IA1-3-2-@)

1" NPT Centrifugal Pump, 1-1/2" Suction, 3 hp @ 3500 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure

$1,795.09

BIPN: BRM-IA1-3-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 7.5 HP, 3 PHASE, 3500 RPM, TEFC ENCLOSURE (BRM-IA1-7.5-2-@)

1" NPT Centrifugal Pump, 1-1/2" Suction, 7.5 hp @ 3500 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure

$2,383.36

BIPN: BRM-IA1-7.5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 5 HP, 3 PHASE, 3500 RPM, TEFC ENCLOSURE (BRM-IA1-5-2-@)

1" NPT Centrifugal Pump, 1-1/2" Suction, 5 hp @ 3500 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure

$2,029.44

BIPN: BRM-IA1-5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 10 HP, 3 PHASE, 3500 RPM, TEFC ENCLOSURE (BRM-IA1-1/2-10-2-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 10 hp @ 3500 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure

$3,201.19

BIPN: BRM-IA1-1/2-10-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 20 HP, 3 PHASE, 3500 RPM, TEFC ENCLOSURE (BRM-IA1-1/2-20-2-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 20 hp @ 3500 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure

$4,806.57

BIPN: BRM-IA1-1/2-20-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each
