Barmesa® IA1½XH-3-4

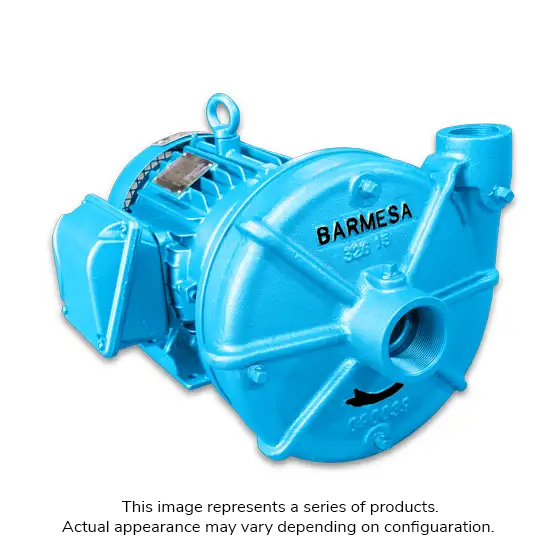

Name: END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 3 HP, 3 PHASE, 1750 RPM, TEFC ENCLOSURE (BRM-IA1-1/2-XH-3-4-@)
Brand: Barmesa®
SKU: BRM-IA1-1/2XH-3-4
Price: 3025.83 USD
Availability: OutOfStock

1-1/2" NPT Centrifugal Pump, 2" Suction, 3 hp @ 1750 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure (IA1½XH Series)

BIPN:: BRM-IA1-1/2XH-3-4
Availability:: Please Call to Order
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Type Heavy-Duty Industrial
Series IA
Motor Type Electric Motor
Motor Connection Type Close-Coupled
Inlet Size 2 in FNPT
Outlet Size 1-1/2 in FNPT
Liquid Temperature Rating 160 deg F (max)
Pump Casing Material Cast Iron ASTM A-48 Class 30
Impeller Type Closed, Dynamically Balanced
Impeller Material Cast Iron ASTM A-48 Class 30
Seal Type Single Mechanical
Seal Material Ceramic, Carbon, Buna-N
Hardware Material Carbon Steel
Horsepower 3 hp @ 1750 rpm
Voltage Rating 3P - 60 Hz
Motor Enclosure Type TEFC Premium Efficiency (IE3)
Dimensions 22 in L x 15 in W x 11 in H

Data Sheet

Owner's Manual
