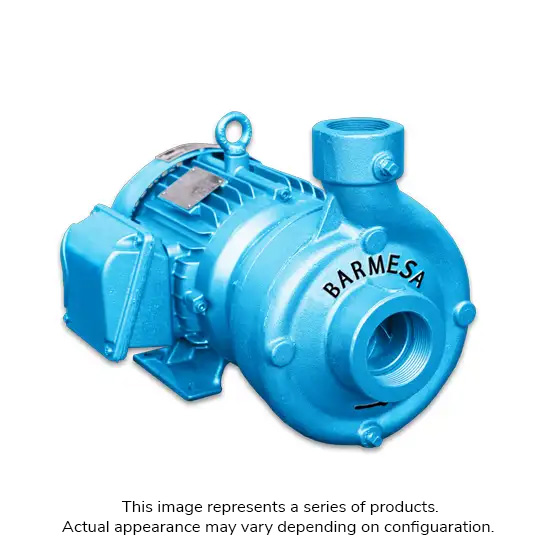

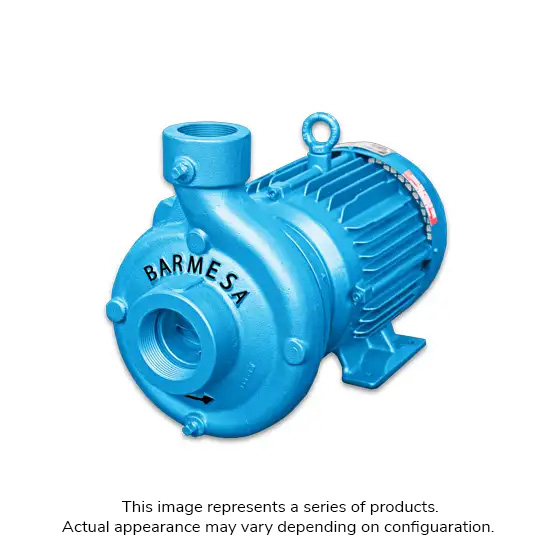

Barmesa® IB2½-3-4

Name: END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 3 HP, 3 PHASE, 1750 RPM, TEFC ENCLSURE (BRM-IB2-1/2-3-4-@)
Brand: Barmesa®
SKU: BRM-IB2-1/2-3-4
Price: 2180.47 USD
Availability: InStock

2-1/2" NPT Centrifugal Pump, 3" Suction, 3 hp @ 1750 rpm, 3-Phase, Cast Iron Casing, SS Impeller, TEFC (IE3) Motor Enclosure

$2,180.47

BIPN:: BRM-IB2-1/2-3-4
Availability:: Typically Ships 7 - 21 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Type Heavy-Duty Industrial
Series IB
Motor Type Electric Motor
Motor Connection Type Close-Coupled
Inlet Size 3 in FNPT
Outlet Size 2-1/2 in FNPT
Liquid Temperature Rating 160 deg F (max)
Pump Casing Material Cast Iron ASTM A-48 Class 30
Impeller Type Closed, Dynamically Balanced
Impeller Material 304 Stainless Steel
Seal Type Single Mechanical
Seal Material Ceramic, Carbon, Buna-N
Hardware Material Carbon Steel
Horsepower 3 hp @ 1750 rpm
Voltage Rating 3P - 60 Hz
Motor Enclosure Type TEFC Premium Efficiency (IE3)

Data Sheet

Owner's Manual
