Barmesa® IA1½XH-5-4

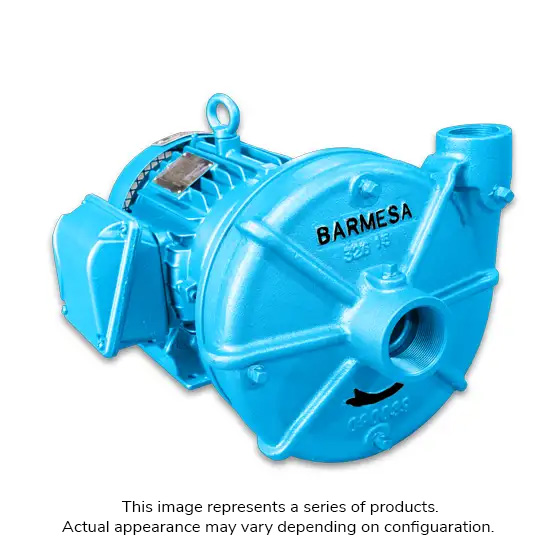

Name: END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 5 HP, 3 PHASE, 1750 RPM, TEFC ENCLOSURE (BRM-IA1-1/2-XH-5-4-@)
Brand: Barmesa®
SKU: BRM-IA1-1/2XH-5-4
Price: 3137.72 USD
Availability: OutOfStock

1-1/2" NPT Centrifugal Pump, 2" Suction, 5 hp @ 1750 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure (IA1½XH Series)

BIPN:: BRM-IA1-1/2XH-5-4
Availability:: Please Call to Order
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Type Heavy-Duty Industrial
Series IA
Motor Type Electric Motor
Motor Connection Type Close-Coupled
Inlet Size 2 in FNPT
Outlet Size 1-1/2 in FNPT
Liquid Temperature Rating 160 deg F (max)
Pump Casing Material Cast Iron ASTM A-48 Class 30
Impeller Type Closed, Dynamically Balanced
Impeller Material Cast Iron ASTM A-48 Class 30
Seal Type Single Mechanical
Seal Material Ceramic, Carbon, Buna-N
Hardware Material Carbon Steel
Horsepower 5 hp @ 1750 rpm
Voltage Rating 3P - 60 Hz
Motor Enclosure Type TEFC Premium Efficiency (IE3)
Dimensions 22 in L x 15 in W x 11 in H

Data Sheet

Owner's Manual

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 3 HP, 3 PHASE, 1750 RPM, TEFC ENCLOSURE (BRM-IA1-1/2-XH-3-4-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 3 hp @ 1750 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure (IA1½XH Series)

$3,025.83

BIPN: BRM-IA1-1/2XH-3-4 Availability: Please Call to Order Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 2 HP, 3 PHASE, 1750 RPM, TEFC ENCLOSURE (BRM-IA1-2-4-@)

1" NPT Centrifugal Pump, 1-1/2" Suction, 2 hp @ 1750 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure

$1,922.63

BIPN: BRM-IA1-2-4 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 5 HP, 3 PHASE, 3500 RPM, TEFC ENCLOSURE (BRM-IA1-5-2-@)

1" NPT Centrifugal Pump, 1-1/2" Suction, 5 hp @ 3500 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure

$2,029.44

BIPN: BRM-IA1-5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 5 HP, 1 PHASE, 3500 RPM, TEFC ENCLOSURE (BRM-IA1-5-2-1-@)

1" NPT Centrifugal Pump, 1-1/2" Suction, 5 hp @ 3500 rpm, 1-Phase, Cast Iron, TEFC (IE3) Motor Enclosure

$2,992.06

BIPN: BRM-IA1-5-2-1 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 5 HP, 3 PHASE, 3500 RPM, TEFC ENCLOSURE (BRM-IA1-1/2-5-2-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 5 hp @ 3500 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure

$2,069.30

BIPN: BRM-IA1-1/2-5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 3 HP, 3 PHASE, 1750 RPM, TEFC ENCLOSURE (BRM-IA1-1/2-H-3-4-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 3 hp @1750 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure (IA1½H Series)

$2,091.61

BIPN: BRM-IA1-1/2H-3-4 Availability: Please Call to Order Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 5 HP, 1 PHASE, 3500 RPM, TEFC ENCLOSURE (BRM-IA1-1/2-5-2-1-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 5 hp @ 1750 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure

$2,423.21

BIPN: BRM-IA1-1/2-5-2-1 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 15 HP, 3 PHASE, 3500 RPM, TEFC ENCLOSURE (BRM-IA1-1/2-XH-15-2-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 15 hp @ 3500 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure (IA1½XH Series)

$4,502.07

BIPN: BRM-IA1-1/2XH-15-2 Availability: Please Call to Order Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 25 HP, 3 PHASE, 3500 RPM, TEFC ENCLOSURE (BRM-IA1-1/2-XH-25-2-@)

1-1/2" NPT Centrifugal Pump, 2" Suction, 25 hp @ 3500 rpm, 3-Phase, Cast Iron, TEFC (IE3) Motor Enclosure (IA1½XH Series)

$7,001.81

BIPN: BRM-IA1-1/2XH-25-2 Availability: Please Call to Order Quantity Interval: 1 / EA - Each
