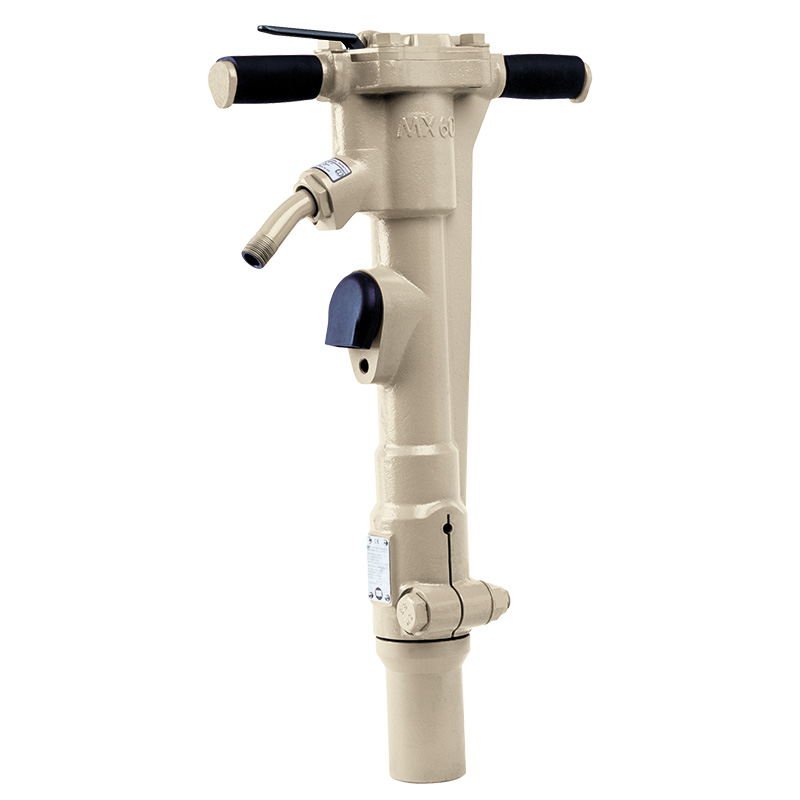

Ingersoll Rand® MX60-SD

The MX60 Series spike drivers deliver more blow energy to each spike than you’ll find anywhere else thanks to our Power-Strok' piston technology. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.

Applications: The spike driver is designed for driving cut spikes in the construction of new track and the relaying of old track with new rails.

• Type Spike Driver
• Bare Tool/Kit Tool Only
• Series MX Series
• Bore Diameter 2.06 in
• Stroke Length 5.75 in
• Blows per Minute 1250 bpm
• Air Flow Rate 70 cfm
• Air Pressure 90 psi
• Air Inlet 3/4 in NPT
• Minimum Hose Size 3/4 in
• Handle Style T-Handle
• Throttle Style Outside Trigger
• Exhaust Location Side - Adjustable

• Powerful: The MX Series spike drivers are powerful, but still easy to handle.
• Variable Exhaust Deflector: Choose where you want the exhaust air to flow with the MX Series 360-degree directional exhaust capabilities.
• Durable: The Ingersoll Rand MX Series spike drivers are rugged enough to tackle any job you throw their way.
