Q-Pumps® QC+328-MD-21-3-3X2

Name: SANITARY CENTRIFUGAL PUMP 316 SS, SINGLE MECH SEAL EPDM, NEMA 21 FRAME, 3" X 2" CLAMP PORTS (QPU-QC+328-MD-21-3-3X2-&)
Brand: Q-Pumps®
SKU: QPU-QC+328-MD-21-3-3X2
Price: 1953.3 USD
Availability: InStock

3-A Sanitary Centrifugal Pump, 3" x 2" Clamp Ports, Mechanical Seal, EPDM Gaskets, NEMA 21 Frame, 8" Impeller

$1,953.30

BIPN:: QPU-QC+328-MD-21-3-3X2
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

QC+ Series Sanitary Centrifugal Pump, 3 in Inlet x 2 in Outlet Clamped Ports, Single Mechanical Seal, EPDM Gaskets, NEMA 21 Frame, 316L Stainless Steel Housing, 8 in Open Impeller, 3-A Certified

The QC Series is ideal for sanitary and non-sanitary applications such as the food, beverages, and agriculture industries. With many upgrade options available, this pump will work as if it was tailor-made.

QC+ Series models add additional benefits:

Eases and speeds up the QC series pumps assembly
Better impeller support with a wedge and a nut.
Greater long-term efficiency.

Pump Style Centrifugal
Series QC+
Inlet Size 3 in
Oulet Size 2 in
Maximum Impeller Diameter 8 in
Impeller Type Open
Connection Style Clamp
Seal Type Single Mechanical
Gasket Material EPDM
NEMA/IEC Frame Type NEMA 21
Wetted Parts Material 316L Stainless Steel
Meets Sanitary Standards 3-A
Temperature Rating 248 deg F

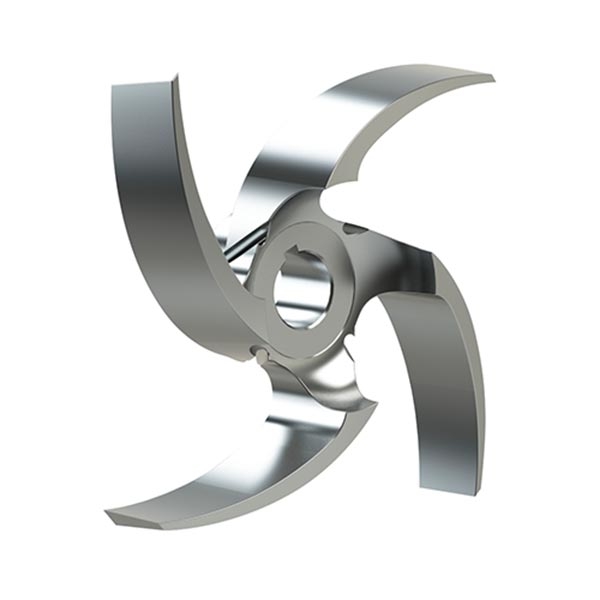

Open impeller
Scroll casing with suction in the center
Sanitary finish according to standards 3-A certified 1004
Support set and legs in stainless steel
Manufactured under NEMA standards
Work in both 60 Hz and 50 Hz
Stainless steel 316L for the parts in contact with the product

QC Series Brochure

QC Series Curves Data

QC Series Dimensions Data

QC Series Maintenance Manual

Q Pump Line Brochure
