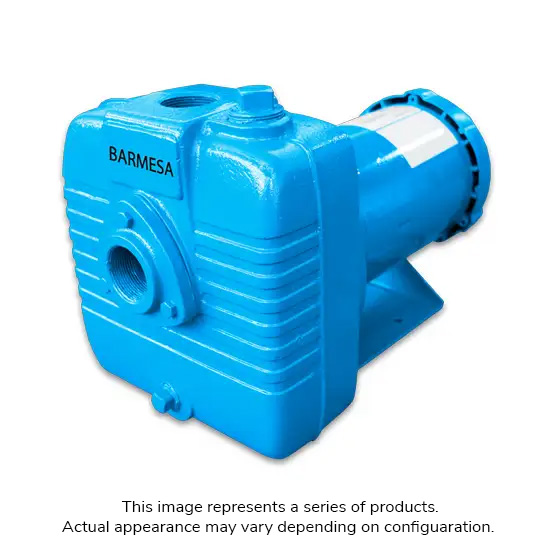

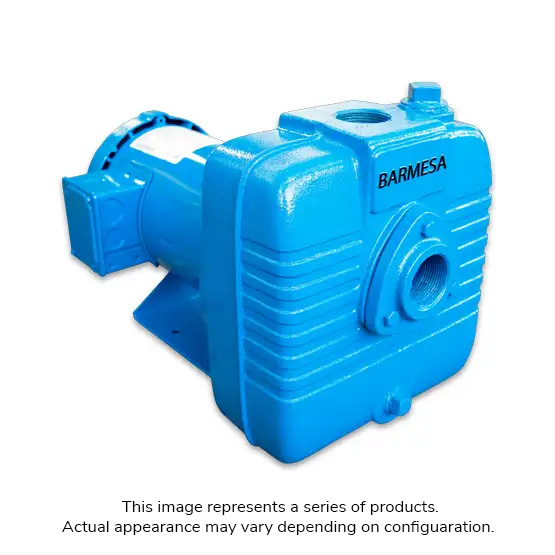

Barmesa® BSP4CCE1-TBF

Name: SELF-PRIMING PUMP CLOSE-COUPLED BRONZE FITTED, 2 HP, 1 PHASE, 115/230 VOLTS, TEFC ENCLOSURE (BRM-BSP4CCE1-TBF-@)
Brand: Barmesa®
SKU: BRM-BSP4CCE1-TBF
Price: 3275.85 USD
Availability: InStock

1-1/2" Self-Priming Centrifugal Pump, 2 hp @ 3450 rpm, 115/230V - 1P, Bronze Volute, TEFC Motor Enclosure

$3,275.85

BIPN:: BRM-BSP4CCE1-TBF
Availability:: Typically Ships 7 - 21 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Type Heavy-Duty Industrial
Series BSP-CCE
Motor Type Electric Motor
Motor Connection Type Close-Coupled
Inlet Size 1-1/2 in FNPT
Outlet Size 1-1/2 in FNPT
Liquid Temperature Rating 160 deg F (max)
Solids Handling Design Open, Trash-Type Impeller
Maximum Diameter of Solids 3/8 in
Pump Casing Material Bronze
Impeller Type 2-Vane Open, Trash Type
Impeller Material Bronze
Seal Type Single Mechanical
Seal Material Ceramic, Carbon, Buna-N
Hardware Material Steel, Stainless Steel
Horsepower 2 hp @ 3450 rpm
Voltage Rating 115/230V - 1P - 60 Hz
Max Amperage 23/11.5 A
Motor Enclosure Type TEFC
Dimensions 20 in L x 11 in W x 11.5 in H
Weight 112 lb

Data Sheet

Owner's Manual

SELF-PRIMING PUMP CLOSE-COUPLED BRONZE FITTED, 3 HP, 1 PHASE, 115/230 VOLTS, TEFC ENCLOSURE (BRM-BSP5CCE1-TBF-@)

1-1/2" Self-Priming Centrifugal Pump, 3 hp @ 3450 rpm, 115/230V - 1P, Bronze Volute, TEFC Motor Enclosure

$3,608.70

BIPN: BRM-BSP5CCE1-TBF Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

SELF-PRIMING PUMP CLOSE-COUPLED CAST IRON, 2 HP, 1 PHASE, 115/230 VOLTS, TEFC ENCLOSURE (BRM-BSP4CCE1-T-@)

1-1/2" Self-Priming Centrifugal Pump, 2 hp @ 3450 rpm, 115/230V - 1P, Cast Iron Volute, TEFC Motor Enclosure

$2,834.12

BIPN: BRM-BSP4CCE1-T Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

SELF-PRIMING PUMP CLOSE-COUPLED BRONZE FITTED, 2 HP, 1 PHASE, 115/230 VOLTS, ODP ENCLOSURE (BRM-BSP4CCE1-BF-@)

1-1/2" Self-Priming Centrifugal Pump, 2 hp @ 3450 rpm, 115/230V - 1P, Bronze Volute, ODP Motor Enclosure

$2,833.48

BIPN: BRM-BSP4CCE1-BF Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

SELF-PRIMING PUMP CLOSE-COUPLED BRONZE FITTED, 2 HP, 3 PHASE, 230/460 VOLTS, TEFC ENCLOSURE (BRM-BSP4CCE3-TBF-@)

1-1/2" Self-Priming Centrifugal Pump, 2 hp @ 3450 rpm, 230/460V - 3P, Bronze Volute, TEFC Motor Enclosure

$3,251.08

BIPN: BRM-BSP4CCE3-TBF Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

SELF-PRIMING PUMP CLOSE-COUPLED BRONZE FITTED, 3 HP, 3 PHASE, 230/460 VOLTS, TEFC ENCLOSURE (BRM-BSP5CCE3-TBF-@)

1-1/2" Self-Priming Centrifugal Pump, 3 hp @ 3450 rpm, 230/460V - 3P, Bronze Volute, TEFC Motor Enclosure

$3,693.85

BIPN: BRM-BSP5CCE3-TBF Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

SELF-PRIMING PUMP CLOSE-COUPLED BRONZE FITTED, 1.5 HP, 3 PHASE, 230/460 VOLTS, TEFC ENCLOSURE (BRM-BSP3CCE3-TBF-@)

1-1/2" Self-Priming Centrifugal Pump, 1.5 hp @ 3450 rpm, 230/460V - 3P, Bronze Volute, TEFC Motor Enclosure

$2,967.77

BIPN: BRM-BSP3CCE3-TBF Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

SELF-PRIMING PUMP CLOSE-COUPLED CAST IRON, 2 HP, 1 PHASE, 115/230 VOLTS, ODP ENCLOSURE (BRM-BSP4CCE1-@)

1-1/2" Self-Priming Centrifugal Pump, 2 hp @ 3450 rpm, 115/230V - 1P, Cast Iron Volute, ODP Motor Enclosure

$2,313.54

BIPN: BRM-BSP4CCE1 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

SELF-PRIMING PUMP CLOSE-COUPLED BRONZE FITTED, 1.5 HP, 1 PHASE, 115/230 VOLTS, ODP ENCLOSURE (BRM-BSP3CCE1-BF-@)

1-1/2" Self-Priming Centrifugal Pump, 1.5 hp @ 3450 rpm, 115/230V - 1P, Bronze Volute, ODP Motor Enclosure

$2,518.65

BIPN: BRM-BSP3CCE1-BF Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

SELF-PRIMING PUMP CLOSE-COUPLED BRONZE FITTED, 3 HP, 1 PHASE, 115/230 VOLTS, ODP ENCLOSURE (BRM-BSP5CCE1-BF-@)

1-1/2" Self-Priming Centrifugal Pump, 3 hp @ 3450 rpm, 115/230V - 1P, Bronze Volute, ODP Motor Enclosure

$3,179.16

BIPN: BRM-BSP5CCE1-BF Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each
