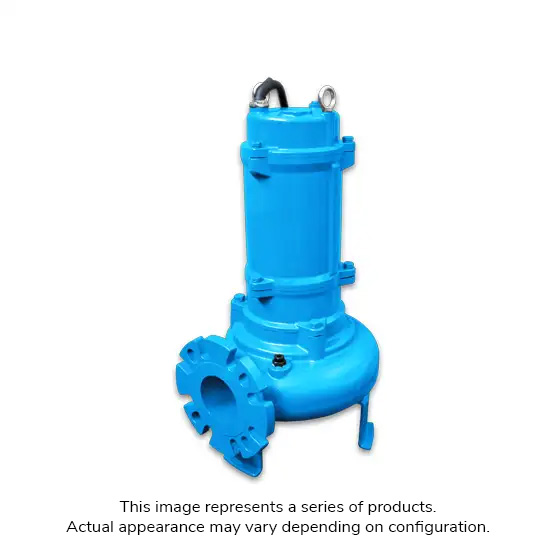

Barmesa® CUT304

Name: SUBMERSIBLE CUTTER PUMP 4" DISCHARGE 3 HP, 3 PHASE, 460 VOLTS, 60 HZ, 1750 RPM, MANUAL, 40 FT CORD (BRM-CUT304-@)
Brand: Barmesa®
SKU: BRM-CUT304
Price: 3652.58 USD
Availability: InStock

4" NPT Submersible Cutter Pump, 3 hp @ 1750 rpm, 460 V - 3P, Cast Iron Enclosure

$3,652.58

BIPN:: BRM-CUT304
Availability:: Typically Ships 7 -14 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Barmesa's cutter pumps are designed to effectively cut and shred solids present in wastewater and other liquids, commonly used in sewage systems, wastewater treatment plants, and industrial applications where the presence of solid waste poses challenges to traditional pumps. Featuring sharp blades, cutter pumps cut solid materials into smaller pieces, facilitating their transportation through the pumping system.

Series Roto-Blade
Discharge 4 in Flange
Switch Actuation Manual
Solids Handling Design Suction Plate w/Serrated Cutter
Flow Rate 185 gpm (rated)
Head 26.2 ft (rated)
Liquid Temperature Rating 104 deg F (max)
Pump Casing Material Cast Iron ASTM A-48 Class 30
Motor Shaft Material AISI 410 Stainless Steel
Impeller Type Cutter
Impeller Material Cast Iron ASTM A-48 Class 30
Seal Type Double Mechanical
Seal Material Silicon Carbide, Carbon Ceramic
Hardware Material Stainless Steel
Horsepower 3 hp @ 1750 rpm
Voltage Rating 460V - 3P - 60 Hz
Max Amperage 4.6 A
Motor Housing Material Cast Iron ASTM A-48 Class 30
Cord Length 40 ft
Cord Type/Gauge STOW, UL, 14/4C
Dimensions 28 in L x 16.5 in W x 36 in H
Weight 165 lb

Owner's Manual

Data Sheet

SUBMERSIBLE CUTTER PUMP 4" DISCHARGE 5 HP, 3 PHASE, 460 VOLTS, 60 HZ, 1750 RPM, MANUAL, 40 FT CORD (BRM-CUT504-@)

4" Flange Submersible Cutter Pump, 5 hp @ 1750 rpm, 460 V - 3P, Cast Iron Enclosure

$5,788.13

BIPN: BRM-CUT504 Availability: Typically Ships 7 -14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE CUTTER PUMP 4" DISCHARGE 7.5 HP, 3 PHASE, 460 VOLTS, 60 HZ, 1750 RPM, MANUAL, 40 FT CORD (BRM-CUT754-@)

4" Flange Submersible Cutter Pump, 7.5 hp @ 1750 rpm, 460 V - 3P, Cast Iron Enclosure

$7,684.43

BIPN: BRM-CUT754 Availability: Typically Ships 7 -14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE CUTTER PUMP 4" DISCHARGE 10 HP, 3 PHASE, 460 VOLTS, 60 HZ, 1750 RPM, MANUAL, 40 FT CORD (BRM-CUT1004-@)

4" Flange Submersible Cutter Pump, 10 hp @ 1750 rpm, 460 V - 3P, Cast Iron Enclosure

$9,122.40

BIPN: BRM-CUT1004 Availability: Typically Ships 7 -14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE CUTTER PUMP 4" DISCHARGE 3 HP, 3 PHASE, 230 VOLTS, 60 HZ, 1750 RPM, MANUAL, 40 FT CORD (BRM-CUT303-@)

4" NPT Submersible Cutter Pump, 3 hp @ 1750 rpm, 230 V - 3P, Cast Iron Enclosure

$3,652.58

BIPN: BRM-CUT303 Availability: Typically Ships 7 -14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE CUTTER PUMP 4" DISCHARGE 7.5 HP, 3 PHASE, 230 VOLTS, 60 HZ, 1750 RPM, MANUAL, 40 FT CORD (BRM-CUT753-@)

4" Flange Submersible Cutter Pump, 7.5 hp @ 1750 rpm, 230 V - 3P, Cast Iron Enclosure

$7,684.43

BIPN: BRM-CUT753 Availability: Typically Ships 7 -14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE CUTTER PUMP 4" DISCHARGE 10 HP, 3 PHASE, 230 VOLTS, 60 HZ, 1750 RPM, MANUAL, 40 FT CORD (BRM-CUT1003-@)

4" Flange Submersible Cutter Pump, 10 hp @ 1750 rpm, 230 V - 3P, Cast Iron Enclosure

$9,122.40

BIPN: BRM-CUT1003 Availability: Typically Ships 7 -14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE CUTTER PUMP 4" DISCHARGE 5 HP, 3 PHASE, 230 VOLTS, 60 HZ, 1750 RPM, MANUAL, 40 FT CORD (BRM-CUT503-@)

4" Flange Submersible Cutter Pump, 5 hp @ 1750 rpm, 230 V - 3P, Cast Iron Enclosure

$5,788.13

BIPN: BRM-CUT503 Availability: Typically Ships 7 -14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE GRINDER PUMP 3 HP, 3 PHASE, 460 VOLTS, 60 HZ, 3500 RPM, MANUAL, 40 FT CORD (BRM-BGP304DS-@)

2" NPT Submersible Grinder Pump, 3 hp @ 3500 rpm, 460 V - 3P, Cast Iron Enclosure

$6,047.45

BIPN: BRM-BGP304DS Availability: Typically Ships 7 - 14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE GRINDER PUMP 3 HP, 3 PHASE, 460 VOLTS, 60 HZ, 3500 RPM, MANUAL, 40 FT CORD (BRM-BGPH304DS-@)

2-1/2" Flange Submersible Grinder Pump, 3 hp @ 3500 rpm, 460 V - 3P, Cast Iron Enclosure

$6,047.45

BIPN: BRM-BGPH304DS Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each
