Barmesa® HMV140-90-2-5003

Name: VERTICAL MULTI-STAGE PUMP SS 2-1/2", 50 HP, 9 STAGE, 140 GPM (BRM-HMV140-90-2-5003-@)
Brand: Barmesa®
SKU: BRM-HMV140-90-2-5003
Price: 16606 USD
Availability: InStock

2-1/2" Vertical 9-Stage Pump, 140 gpm, 895' Max Head , 50 hp @ 3500 rpm, 230/460V - 3P, Flange Connections, Stainless Steel, TEFC

$16,606.00

BIPN:: BRM-HMV140-90-2-5003
Availability:: Typically Ships 7 - 21 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

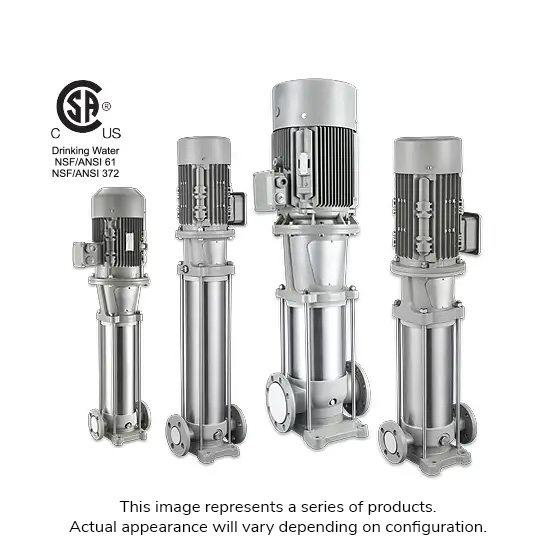

About HMV Series Vertical Multi-Stage Pumps

These pumps efficiently transfer fluids in diverse industrial, commercial, and municipal settings, providing high-pressure capabilities and reliable performance. Common applications include water supply systems, boiler feed, pressure boosting, and industrial processes requiring high-pressure fluid transfer. With their compact design and versatile specifications, they excel in installations with limited space, handling various industrial liquid media at different temperatures and pressure ranges effectively.

We have them in a wide variety of specifications to meet your flow and pressure requirements. A single pump can solve multiple liquids supply problems!

Motor Features

PREMIUM efficiency motor
1 HP up to 75 HP
Totally enclosed fan-cooled
Three-phase, 3500 RPM
230/460 V, 60 Hz
IP55 protection class
Class F insulation

Operating Conditions

Thin, clean, non-flammable and non-explosive liquid, free of granules and fibers.
Liquid temperature: 5 °F ~ 221 °F
Ambient temperature up to 104 °F
Height up to 1000 ft

Applications

Water filtration and transport
Fire fighting system
Refrigeration and air conditioning system
Irrigation
Supply of liquids such as oil, alcohol, acids, alkalis, among others
Water treatment

Type High Efficiency
Series HMV
Number of Stages 9
Inlet Size 2-1/2 in
Outlet Size 2-1/2 in
Connection Type ANSI Flange
Flow Rate 140 gpm (rated)
Max Head 895 ft
Pressure Rating 479 psi (max)
Liquid Temperature Rating 323 deg F (max)
Horsepower 50 hp @ 3500 rpm
Voltage Rating 230/460V - 3P - 60 Hz
Max Amperage 111/55.7 A
Pump Casing Material AISI 304 Stainless Steel
Mechanical Seal Material TC/Graphite/Viton
Shaft Material AISI 304 Stainless Steel
Impeller Material AISI 304 Stainless Steel
Diffuser Material AISI 304 Stainless Steel
Motor Enclosure Type TEFC, Premium Efficiency (IE3)
Dimensions 12.6 in L x 10.7 in W x 72 in H
Weight 582 lb

Data Sheet

HMV Series Owner's Manual

HMV Series Brochure
