Barmesa® HMV70-90-2503

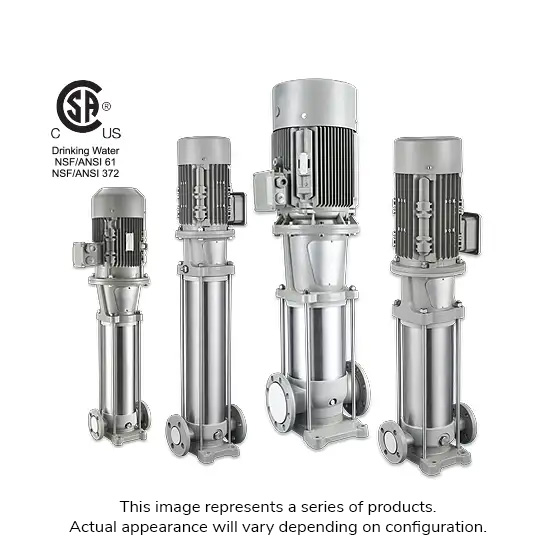

About HMV Series Vertical Multi-Stage Pumps

These pumps efficiently transfer fluids in diverse industrial, commercial, and municipal settings, providing high-pressure capabilities and reliable performance. Common applications include water supply systems, boiler feed, pressure boosting, and industrial processes requiring high-pressure fluid transfer. With their compact design and versatile specifications, they excel in installations with limited space, handling various industrial liquid media at different temperatures and pressure ranges effectively.

We have them in a wide variety of specifications to meet your flow and pressure requirements. A single pump can solve multiple liquids supply problems!

Motor Features

• PREMIUM efficiency motor
• 1 HP up to 75 HP
• Totally enclosed fan-cooled
• Three-phase, 3500 RPM
• 230/460 V, 60 Hz
• IP55 protection class
• Class F insulation

Operating Conditions

• Thin, clean, non-flammable and non-explosive liquid, free of granules and fibers.
• Liquid temperature: 5 °F ~ 221 °F
• Ambient temperature up to 104 °F
• Height up to 1000 ft

Applications

•  Water filtration and transport
•  Fire fighting system
•  Refrigeration and air conditioning system
•  Irrigation
•  Supply of liquids such as oil, alcohol, acids, alkalis, among others
•  Water treatment

• Type High Efficiency
• Series HMV
• Number of Stages 9
• Inlet Size 2 in
• Outlet Size 2 in
• Connection Type ANSI Flange
• Flow Rate 70 gpm (rated)
• Max Head 738 ft
• Pressure Rating 377 psi (max)
• Liquid Temperature Rating 297 deg F (max)
• Horsepower 25 hp @ 3500 rpm
• Voltage Rating 230/460V - 3P - 60 Hz
• Max Amperage 56.5/28.2 A
• Pump Casing Material AISI 304 Stainless Steel
• Mechanical Seal Material TC/Graphite/Viton
• Shaft Material AISI 304 Stainless Steel
• Impeller Material AISI 304 Stainless Steel
• Diffuser Material AISI 304 Stainless Steel
• Motor Enclosure Type TEFC, Premium Efficiency (IE3)
• Dimensions 11.8 in L x 9.7 in W x 58 in H
• Weight 403 lb
